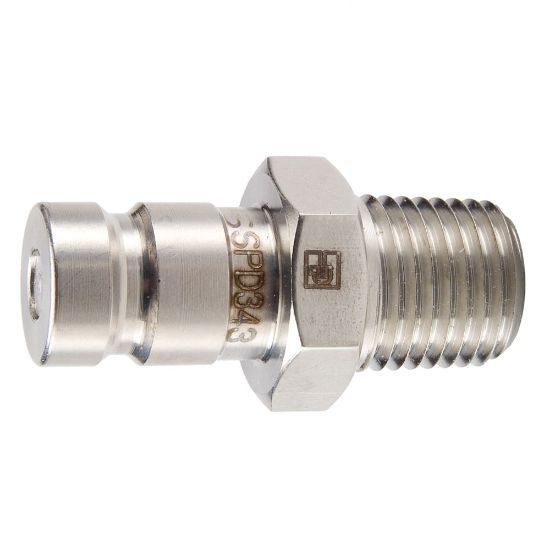

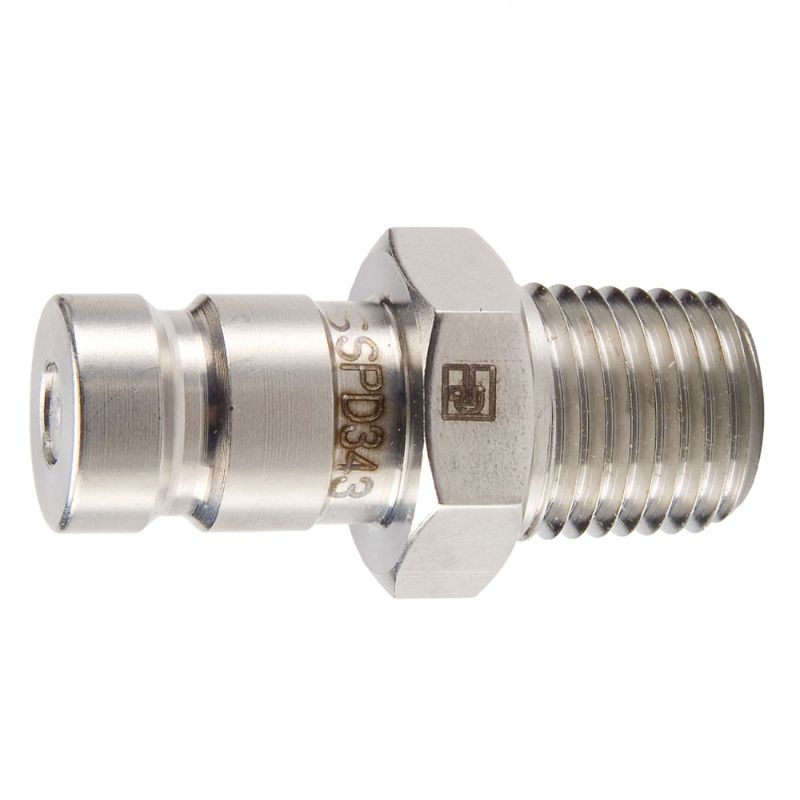

Parker SSPD343Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SSPD343Y

$147.96/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	1/8 inch
Seal Material	Fluorocarbon	Plating Type	na
Product Type	Push to connect	Specifications Met	SAE J1502 / ISO 15171-1
Application	Diagnostic	Flow Rate	0.8 Gal/min
Valve Type	Non-spill	Maximum Operating Pressure	6000 psi
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Body Material	Stainless steel
Hex Size	0.69 inch	Tube Size (inch)	na
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
Connection Type	Male NPTF
