*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

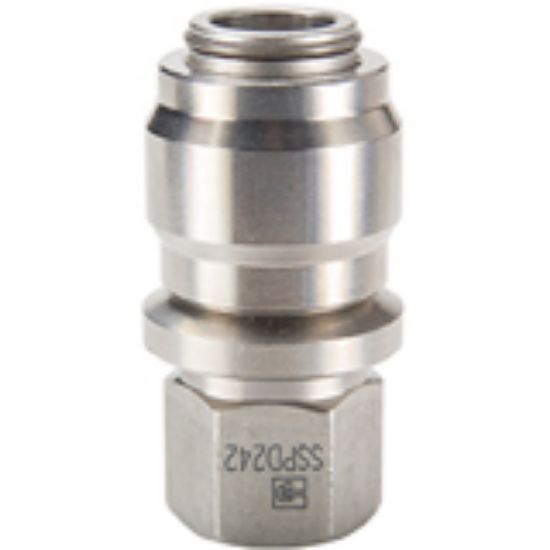

Parker SSPD242Y - Test Port, Diagnostic Quick Couplings, ISO 15171-1 - PD Series

Parker's diagnostic quick couplers and test point nipples provide easy connections for mechanical gauges or specialized diagnostic equipment including Parker's SensoControl meters and accessories.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SSPD242Y

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	6000 psi	Application	Diagnostic
Specifications Met	SAE J1502 / ISO 15171-1	Minimum Operating Temperature	-15 °F
Flow Rate	0.8 Gal/min	Hex Size	0.81 inch
Body Size	1/8 inch	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division	Plating Type	na
Seal Material	Fluorocarbon	Product Type	Push to Connect
Valve Type	Non-spill	Body Material	Stainless Steel
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Female Coupler
Connection Type	Female NPTF	Tube Size (inch)	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
