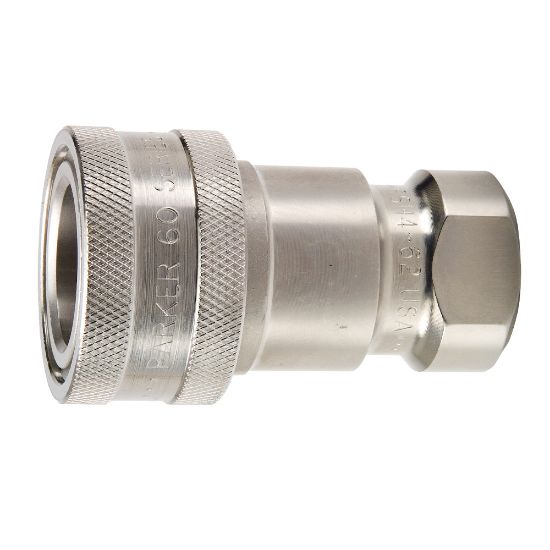

Parker SSH8-62Y-BSPP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SSH8-62Y-BSPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Plating Type	na	Minimum Operating Temperature	-26 °C
Division	Quick Coupling Division	Hex Size	1.62 inch
Ball Material	Stainless Steel	Flow Rate	189 L/min
Vacuum Pressure Rating	-0.9 bar	Maximum Operating Temperature	204 °C
Specifications Met	ISO 7241-1, series B	Valve Material	316 Stainless steel
Valve Type	Poppet	Product Type	Manual Connect
Body Material	Stainless Steel	Connection Thread Size (inch)	1 - 11-1/2
Maximum Operating Pressure	3000	Application	General Purpose
Connection Type	Female BSPP	Seal Material	Fluorocarbon
Coupling Half	Female Coupler	Body Material	316 Stainless Steel
Body Size (inch)	1
