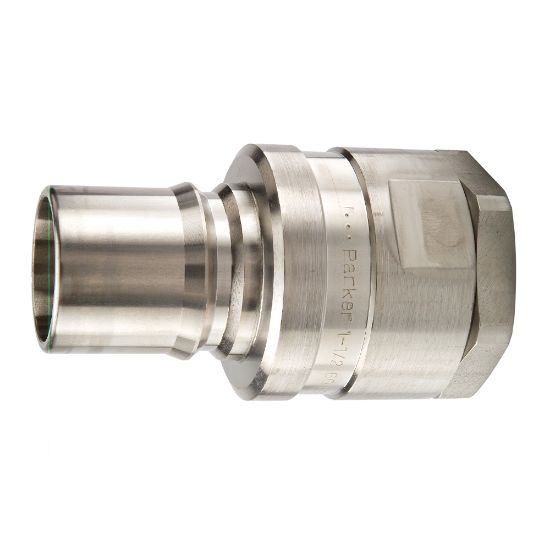

Parker SSH12-63LY - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SSH12-63LY

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Specifications Met	ISO 7241-1 Series B	Maximum Operating Temperature	204 °C
Valve Material	Stainless Steel 316	Vacuum Pressure Rating	n/a
Valve Type	Poppet	Hex Size	2.50 inch
Product Type	Manual Connect	Division	Quick Coupling Division
Minimum Operating Temperature	-15 °F	Flow Rate	378 L/min
Plating Type	n/a	Body Material	Stainless Steel
Connection Type	Female NPTF	Seal Material	Fluorocarbon
Application	General Purpose	Maximum Operating Pressure	1500
Body Size (inch)	1 1/2	Body Material	316 Stainless Steel
Connection Thread Size (inch)	1 1/4 - 11 1/2	Coupling Half	Male Nipple
