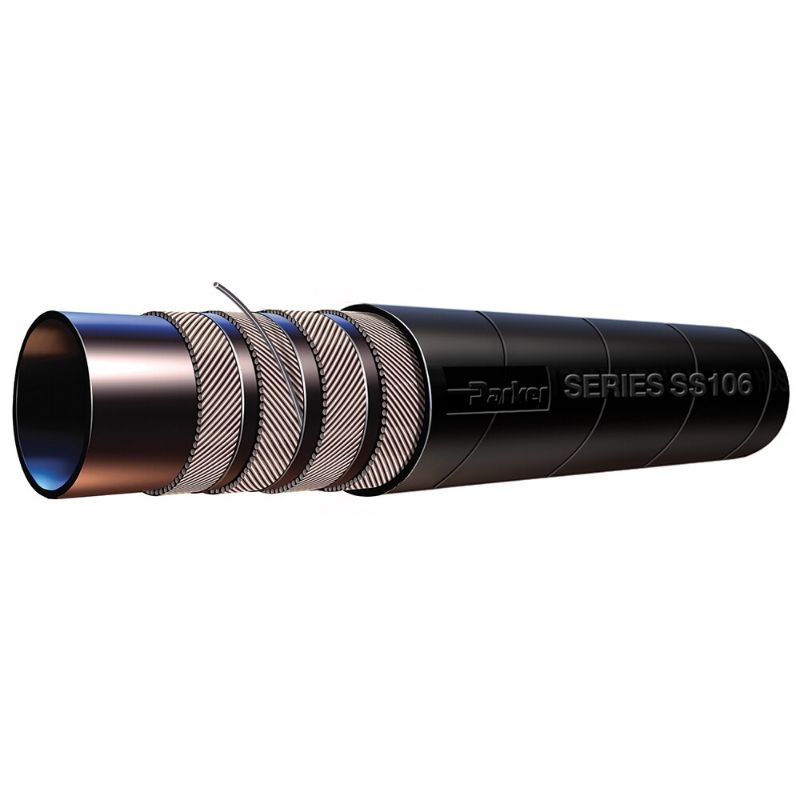

Parker SS106-2500 - Large Diameter Liquid Petroleum Gas LPG Hose, Series SS106

Large Diameter Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series SS106

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SS106-2500

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Liquefied Petroleum Gas (LPG)	Cover Structure	Wrapped
Length per Package	100	Outside Diameter	3.240
Specifications Met	ISO 2928 (E)	Hose Inner Tube Material	Black
Package Type	Coil	Cover Color	Black
Weight	1.87	Hose Reinforcement Material	4 Plies of Textile with Static Wire
Maximum Operating Pressure	350	Minimum Bend Radius	n/a
Minimum Operating Temperature	-40	Media	LPG
Cover Material	Nitrile	Inside Diameter	2-1/2
Division	Hose Products Division	Maximum Operating Temperature	180
Hose I.D. (inch)	2-1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
