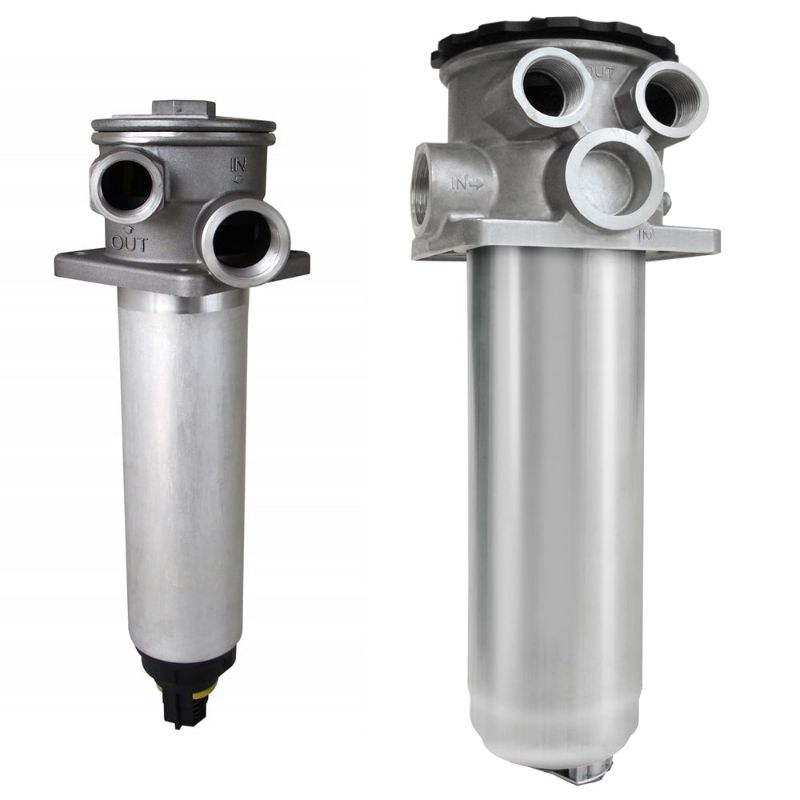

Parker SRL1205QLBPGG161 - Tanktop Mounted Suction and Return Filter - SR Series

The SR series filters are capable of feeding filtered oil under positive pressure to the suction side of the boost pump filtering both open and closed loop oil systems through one filter.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SRL1205QLBPGG161

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Type	Tank Mounted	Operating Pressure	10
Technology	Filtration	Indicator Pressure Setting	No Indicator
Micron Rating	5	Brand	Parker
Division	Hydraulic & Industrial Process Filtration Division EMEA	Industry	Construction
Division	Hydraulic & Industrial Process Filtration Division EMEA	Operating Temperature	-30 to 110
Seal Material	Nitrile	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Housing Material	Aluminium	Product Series	SR Series
Product Style	Tanktop Mounted Suction and Return Filter	Application	Agricultural Harvesting Machines
For Fluid Type	Hydraulic Oil	Product Type	Hydraulic Filters
Flow Rate	0 to 100 l/min	Connection Type	Return G1", Suction G3/4"
Filter Element Type	05QL Ecoglass	Indicator Type	No indicator, Port plugged R
Bypass Valve Pressure Rating	1.7 bar	Options	Standard
