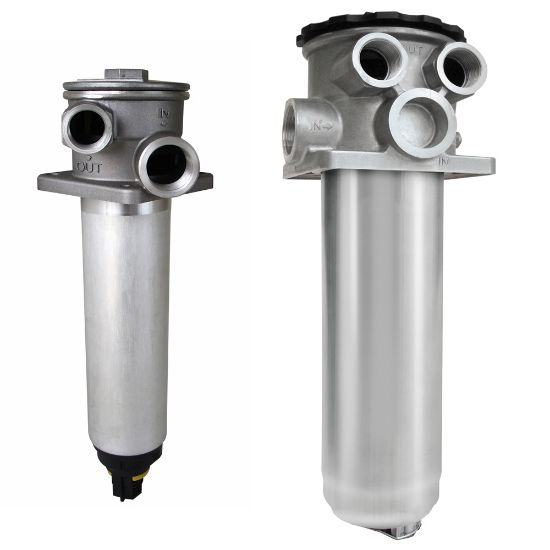

Parker SRL1205QLBG5GG16G - Tanktop Mounted Suction and Return Filter - SR Series

The SR series filters are capable of feeding filtered oil under positive pressure to the suction side of the boost pump filtering both open and closed loop oil systems through one filter.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SRL1205QLBG5GG16G

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic Filters	Seal Material	Nitrile
Operating Temperature	-30 to 110	Specifications Met	Degree of filtration determined by multipass test according to ISO 16889.
Product Series	SR Series	Technology	Filtration
Indicator Pressure Setting	2.0	For Fluid Type	Hydraulic Oil
Product Style	Tanktop Mounted Suction and Return Filter	Division	Hydraulic & Industrial Process Filtration Division EMEA
Operating Pressure	10	Mounting Type	Tank Mounted
Housing Material	Aluminium	Division	Hydraulic & Industrial Process Filtration Division EMEA
Application	Road Rollers	Industry	Construction
Brand	Parker	Micron Rating	5
Filter Element Type	05QL Ecoglass	Connection Type	Return G1", Suction G3/4"
Flow Rate	0 to 100 l/min	Options	Strainer 120µ
Bypass Valve Pressure Rating	1.7 bar	Indicator Type	Visual
