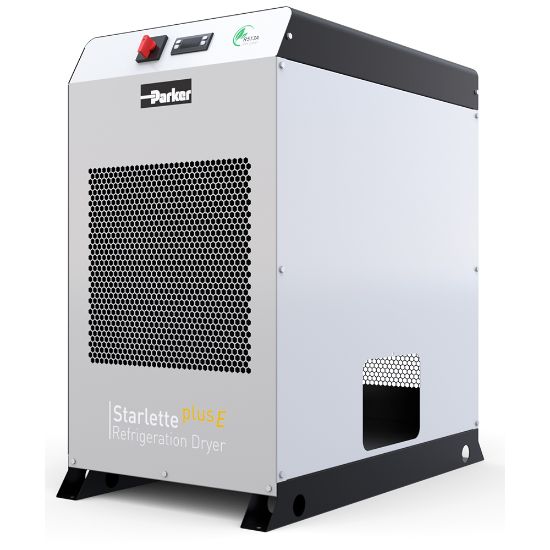

Parker SPS080-A2301DF14EXSES - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS080-A2301DF14EXSES

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Technology	Filtration	Height	33.1 inch
Refrigerant Type	R513A (Low GWP Refrigerant)	Division	Gas Separation and Filtration Division EMEA
Connection Type	BSPP	Application	Compressed Air Applications
Industry	Industrial Manufacturing Equipment	Depth	780.0 mm
Noise Level	< 75 dBA	Product Series	StarlettePlus-E
Ambient Temperature	122.0 °F Maximum	Power Consumption	0.90 kW (60Hz)
Flow Rate	555.0 m3/hour at 7 barg, 60Hz	Port Size	1-1/2 inch
Product Style	Refrigeration	Division	Gas Separation and Filtration Division EMEA
Operating Pressure	29 to 203 psig	Ingress Protection Rating	IP22 Indoor Use Only
Weight	80 kg	Width	450.0 mm
Brand	Parker	Specifications Met	PED 2014/68/EU Fluid Group II
Electrical Requirements	230V 1ph 50Hz/60Hz	Pressure Dew Point	Options: 7°C (45°F) or 10°C (50°F)
Operating Temperature	5 to 50 °C	Product Type	Compressed Air Dryer
Flow Rate	480 m³/h @ 7 barg (282 cfm @ 102 psig) 50 Hz	Drain Option	Electonic Level Sensing & Energy Savings
