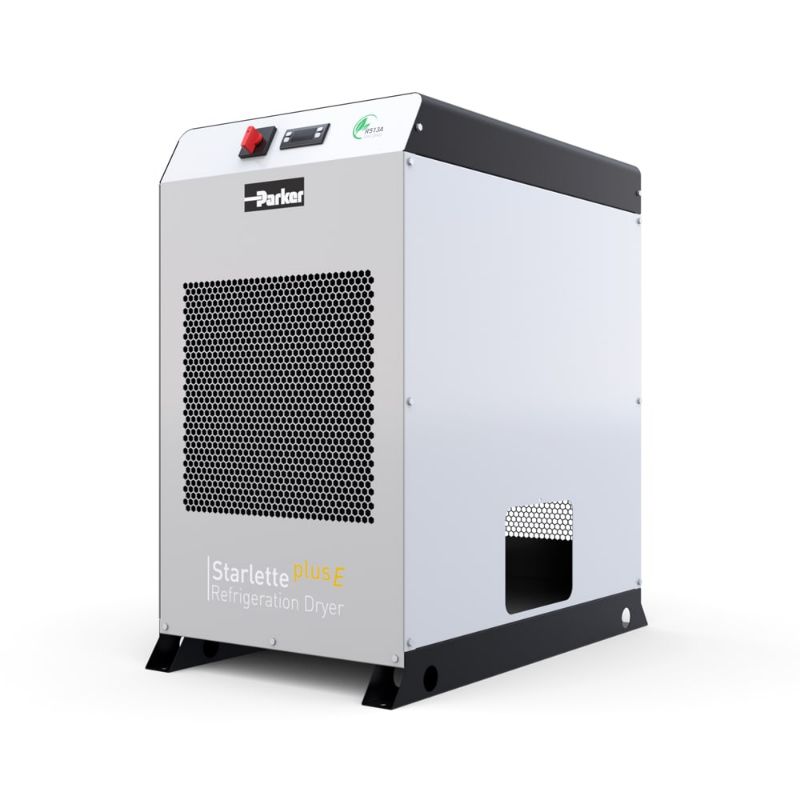

Parker SPS0175-A23016016TIU - StarlettePlus-E (SPS) Series Compressed Air Refrigeration Dryers - 60Hz & UL Listed for North America

Refrigerated compressed air dryers effecitve in removing water vapor, down to levels in accorance with ISO8573-1, from compressed air flow rates between 10-250 scfm while maintaining industry leading low operating costs.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS0175-A23016016TIU

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	Parker	Minimum Operating Temperature	5.0 °C
Pressure Dew Point	ISO 8573-1 Class 5 for Water	Port Connection	1 1/2 in
Maximum Ambient Temperature	122.0 °F	Width	15.7 inch
Maximum Operating Temperature	149.0 °F	Minimum Operating Pressure	2.0 barg
Refrigerant Type	R-513A	Electronics Type	ETL Listed
Ingress Protection Rating	IP44	Optional Accessories	Dryer Only
Depth	630.0 mm	Connection Type	NPT-F
Division	Industrial Gas Filtration and Generation Division	Weight	55 kg
Maximum Operating Pressure	16.0 barg	Product Type	Refrigeration
Height	25.6 inch	Technology	Non-Cycling
Electrical Requirements	230V / 1Ph / 60Hz	Flow Rate	175 scfm (297.3 m3/h)
Design Rating	100 psig (7 barg) inlet, 100°F (38°C) inlet & 100°F (38°C) ambient	Cooling Method	Air Cooled Condenser
