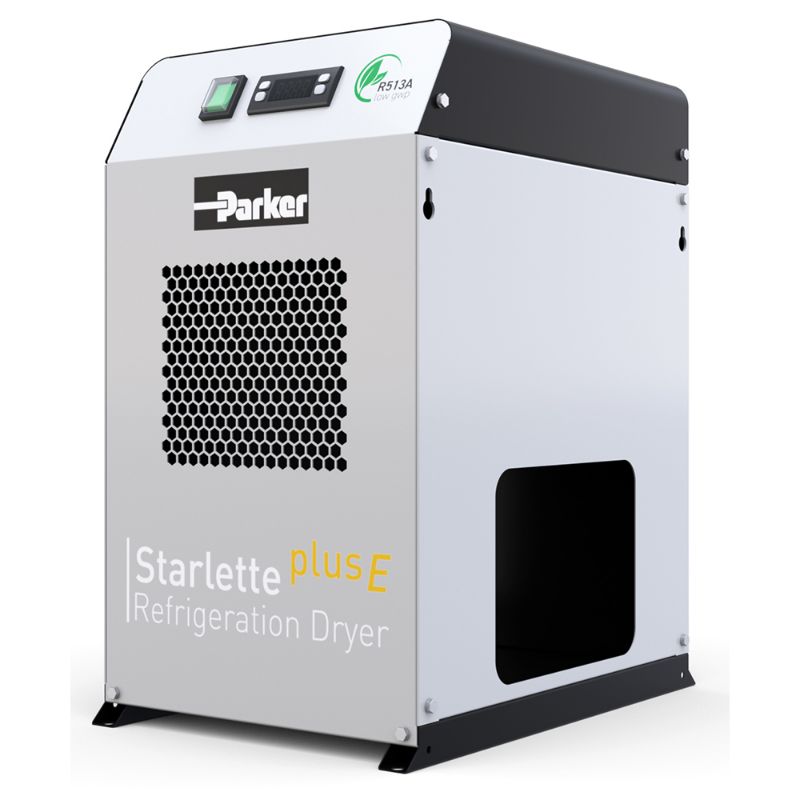

Parker SPS009-A2301DF16FHS - StarlettePlus-E Small To Medium Flow Compressed Air Refrigeration Dryers

Effective removal of water vapour (to +3°C pdp) from compressed air at low operating costs. Dual frequency ready, with volume flows up to 600m³/h (50Hz) or 689m³/hr (60Hz) @ 7 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SPS009-A2301DF16FHS

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Compressed Air Dryer	Weight	25 kg
Product Style	Refrigeration	Division	Gas Separation and Filtration Division EMEA
Application	Compressed Air Applications	Width	11.8 inch
Operating Temperature	5 to 50 °C	Electrical Requirements	230V 1ph 50Hz/60Hz
Port Size	1/2 inch	Flow Rate	60.0 m3/hour at 7 barg, 60Hz
Refrigerant Type	R513A (Low GWP Refrigerant)	Technology	Filtration
Power Consumption	0.15 kW (50Hz)	Division	Gas Separation and Filtration Division EMEA
Connection Type	BSPP	Pressure Dew Point	Standard: 3°C (37°F)<br/>
Specifications Met	PED 2014/68/EU Fluid Group II	Ingress Protection Rating	IP22 Indoor Use Only
Height	20.5 inch	Brand	Parker
Operating Pressure	29 to 232 psig	Industry	Industrial Manufacturing Equipment
Ambient Temperature	122.0 °F Maximum	Product Series	StarlettePlus-E
Depth	400.0 mm	Noise Level	< 75 dBA
Drain Option	External Float	Flow Rate	54 m³/h @ 7 barg (32 cfm @ 102 psig) 50 Hz
