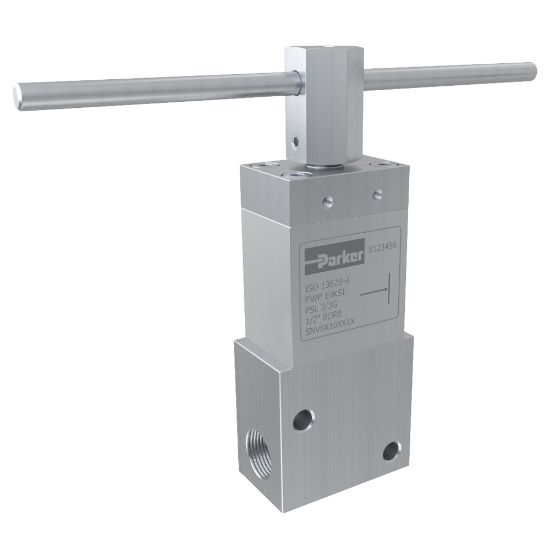

Picture of Parker SNV8E106B1-HN - Subsea Needle valve, Non-Rising, Non-Rotating Stem

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SNV8E106B1-HN - Subsea Needle valve, Non-Rising, Non-Rotating Stem

Parker's 2-way subsea needle valve featuring non-rising, non-rotating stem for operations up to 10,000 PSI and depths to 3050m. Designed and tested to API 17D PSL 3/3G (including API 6A PR2F) for safe and reliable performance in subsea applications.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. SNV8E106B1-HN
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Connection TypeButt WeldDesign RatingAPI 6A
Additional OptionsNACE certificationMaximum Depth3050m
Valve Configuration2-way StraightMaximum Operating Temperature121°C
Connection Size3/8"Flow DirectionUnidirectional
OptionsHandleMinimum Operating Temperature-29°C
Stem TypeNon-Rising, Non-Rotating StemBore Diameter12mm
Maximum Pressure Rating10,000 PSIDivisionInstrumentation Products Division
Body MaterialDuplex Stainless SteelOptionsHandle
Valve Configuration2-way StraightBody MaterialDuplex Stainless Steel
Connection Size3/8"Bore Diameter (mm)12
Maximum Pressure Rating10,000 PSIAdditional OptionsNACE certification
Connection TypeButt Weld
Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

02-0142SE
