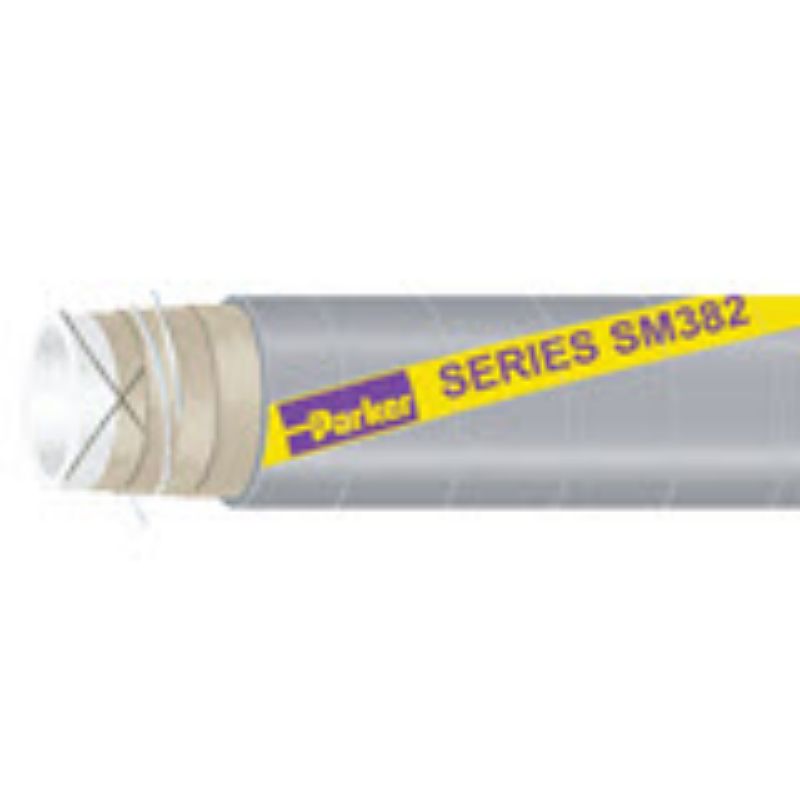

Parker SM382-2000 - HARVEST PLUS™ Crush Resistant Food and Beverage Suction Hose, Series SM382

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SM382-2000

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Bend Radius	7	Cover Color	Gray
Maximum Operating Temperature	225	Weight	1.53
Vacuum Pressure Rating	29	Outside Diameter	2.769
Maximum Operating Pressure	250	Minimum Operating Temperature	-40
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Tube Material	Chlorobutyl
Length per Package	100	Cover Structure	Wrapped
Media	Food & Beverage (Milk)	Inside Diameter	2
Division	Hose Products Division	Package Type	Coil
Hose Inner Tube Material	White	Design Factor	4:1
Application	Food & Beverage Processing	Specifications Met	3A
Hose Reinforcement Material	4 Plies of Textile with Dual Wire Helix and Dual Monofilament Helix	Hose I.D. (inch)	2
