*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

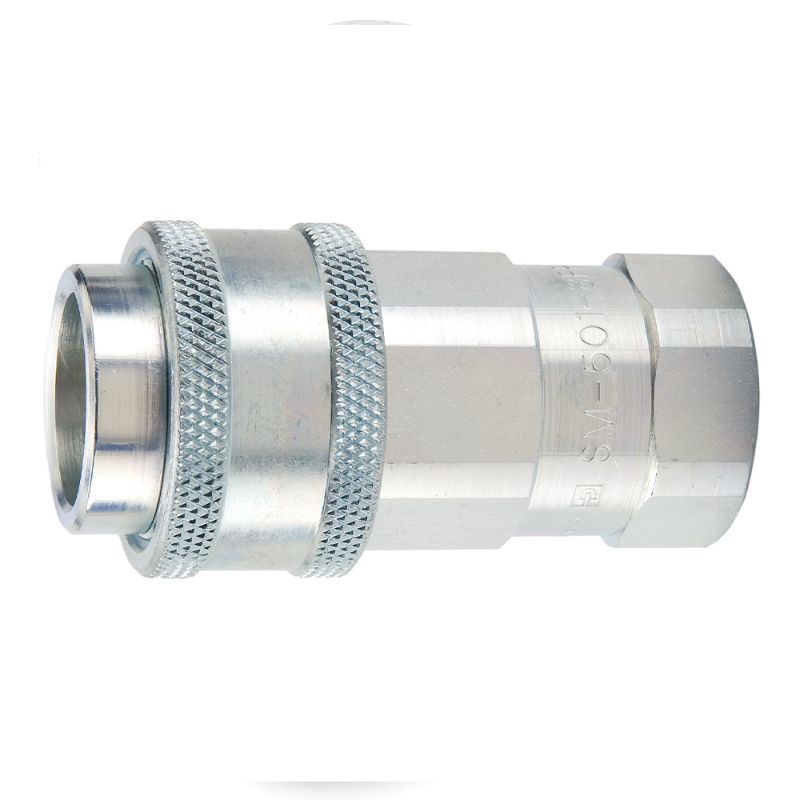

Parker SM-501-12FP - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

AFP Availability:	Quote Required
Partner Available:	5 In Stock

Brand Parker

Part No. SM-501-12FP

$86.35/each

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Application	Hydraulic \|General purpose
Plating Type	Zinc with clear trivalent chromate	Product Type	Manual Connect
Hex Size	1.37	Body Material	Steel
Seal Material	Nitrile	Valve Type	Poppet
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
Coupling Half	Female Coupler	Body Size (inch)	1/2
Maximum Operating Pressure	6000 PSI	Flow Rate	12 GAL/MIN
Connection Type	Female NPTF	Connection Thread Size (inch)	3/4 - 14

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
