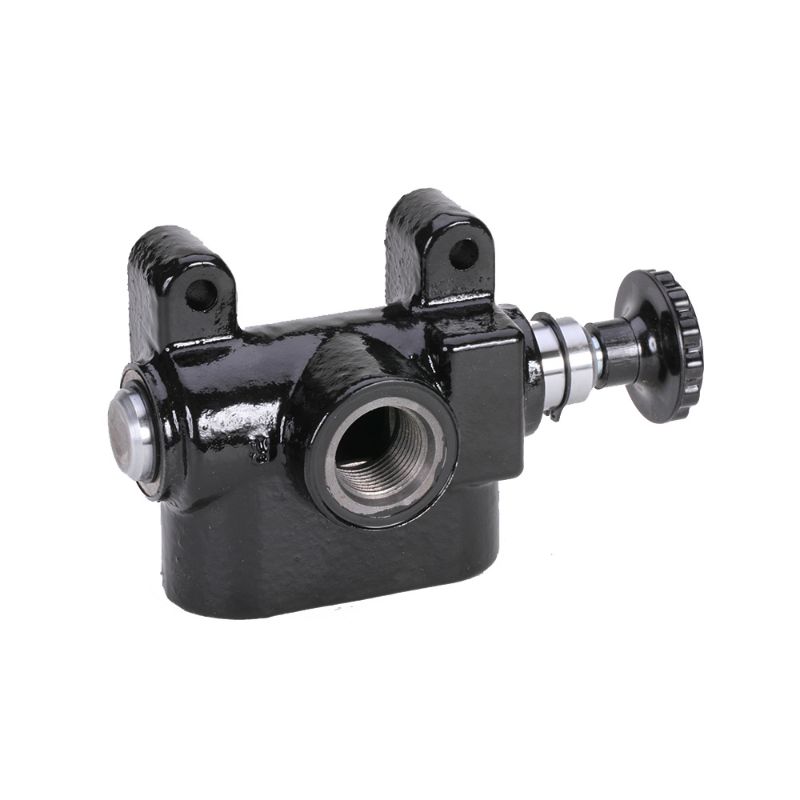

Parker SM-38 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SM-38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic Valve Systems Division	For Fluid Type	Hydraulic Oil
Function	Selector Valve	Maximum Flow Rate	20
Actuation Type	Manual	Maximum Operating Temperature	+200 °F
Body Material	High Strength Cast Iron	Connection Size	3/8"
Adjustment Mechanism	Knob	Maximum Operating Pressure	138 bar
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Connection Type	NPT	Weight	1.1 kg
Mounting	Manifold	Style	Circuit Selector
Port Size	3/8-NPT
