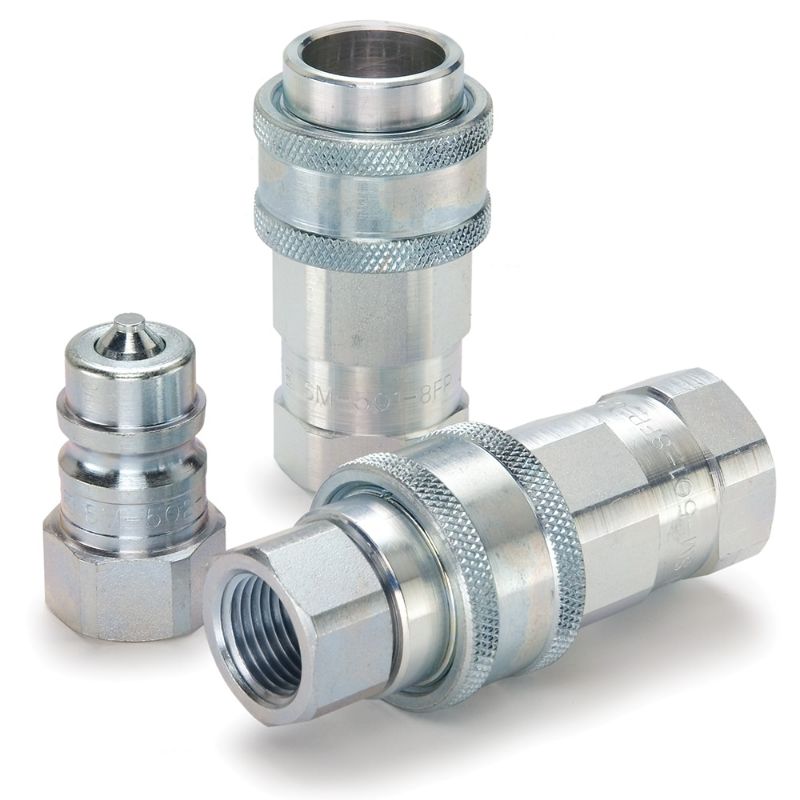

Parker SM-251-4FP-B - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Name: Parker SM-251-4FP-B - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series
SKU: SM-251-4FP-B
Price: 82.39 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

AFP Availability:

1 Limited Stock

North Chesterfield, VA

Partner Available:

Quote Required

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SM-251-4FP-B

$82.39/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Brass
Minimum Operating Temperature	-40 °F	Hex Size	0.75
Seal Material	Nitrile	Product Type	Manual Connect
Plating Type	n/a	Application	General Purpose
Maximum Operating Temperature	250 °F	Division	Quick Coupling Division
Valve Type	Poppet	Coupling Half	Female Coupler
Maximum Operating Pressure	1500 PSI	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Flow Rate	3 GAL/MIN
Connection Type	Female NPTF
