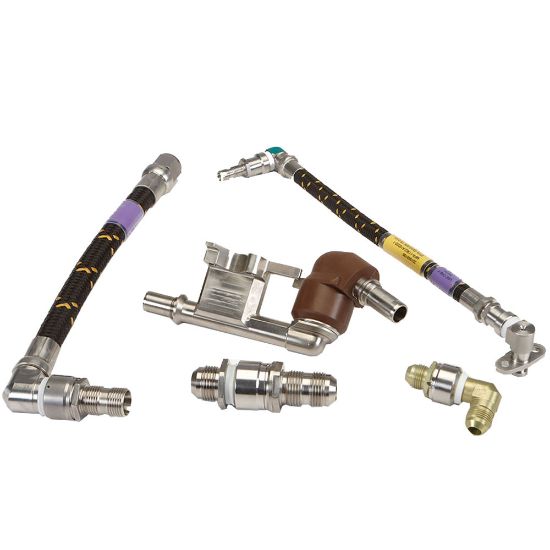

Parker SJ504N04E2-04E - High-Pressure Swivel Joints

Proven high-pressure fittings designed to provide torsional rotation for use in dynamic fluid or pneumatic aerospace conveyance systems, such as cargo doors and retractable landing gears.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SJ504N04E2-04E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Stainless Steel	Continuous Torque	2.0 inch-lbs maximum
Proof Pressure	8000	Burst Pressure	16,000
Outside Diameter	0.8	Minimum Operating Pressure	-5
Division	Stratoflex Products Division	Maximum Operating Pressure	4000
Fitting Type	SAE AS33514-04	Fluid Type	Hydraulic Fluid (Red Oil, 5606/83282)
Maximum Fluid Temperature (F)	275	Line Size - Inlet	1/4 inch
Configuration Type	Straight to 90 degree elbow	Minimum Fluid Temperature (F)	-65
Special Options	None
