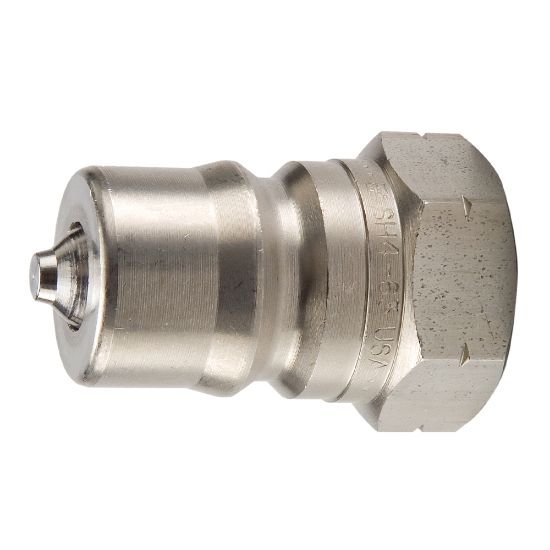

Parker SH4-63Y-BSPP - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SH4-63Y-BSPP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-15 °F	Valve Material	303 Stainless steel
Flow Rate	12 Gal/min	Vacuum Pressure Rating	-0.9 bar
Maximum Operating Temperature	400 °F	Plating Type	na
Division	Quick Coupling Division	Specifications Met	ISO 7241-1, series B
Hex Size	1.12 inch	Valve Type	Poppet
Product Type	Manual Connect	Body Material	Stainless Steel
Coupling Half	Male Nipple	Connection Type	Female BSPP
Body Size (inch)	1/2	Body Material	303 Stainless Steel
Seal Material	Fluorocarbon	Application	General Purpose
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1/2 - 14

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
