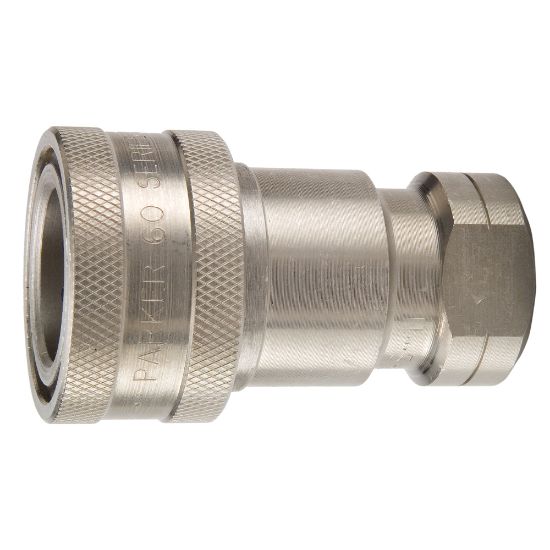

Parker SH4-62W - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. SH4-62W

$175.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	204 °C
Hex Size	1.12 inch	Specifications Met	ISO 7241-1, series B
Vacuum Pressure Rating	27.4 Inch-Hg	Valve Material	303 Stainless steel
Flow Rate	12 Gal/min	Valve Type	Poppet
Product Type	Manual Connect	Division	Quick Coupling Division
Plating Type	na	Minimum Operating Temperature	-54 °C
Ball Material	Stainless Steel	Body Material	Stainless Steel
Maximum Operating Pressure	5000	Connection Thread Size (inch)	1/2 - 14
Coupling Half	Female Coupler	Body Material	303 Stainless Steel
Application	General Purpose	Seal Material	Ethylene Propylene
Body Size (inch)	1/2	Connection Type	Female NPTF
