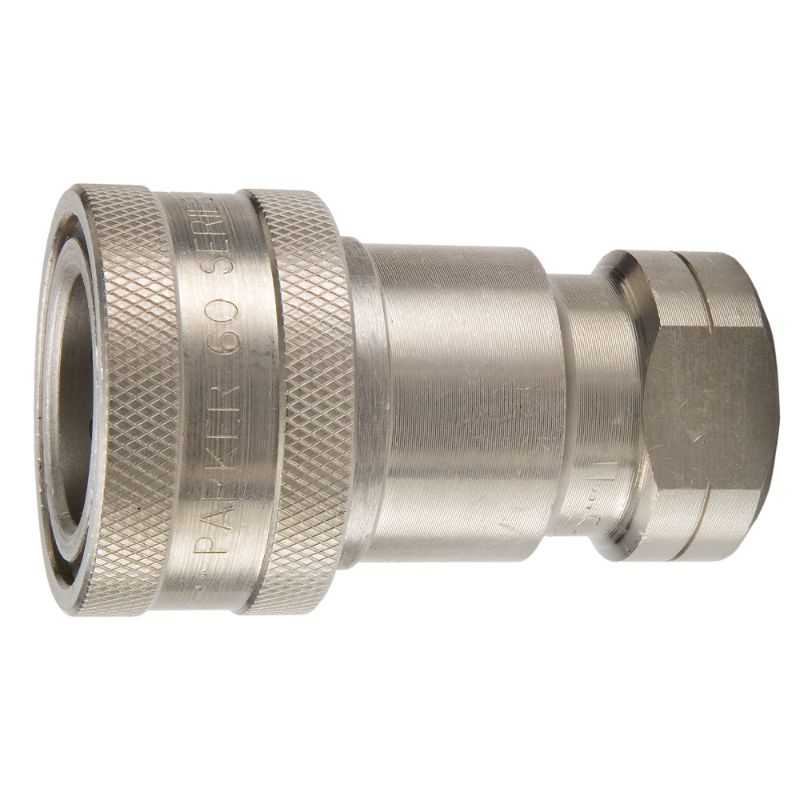

Parker SH2-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Name: Parker SH2-62 - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series
SKU: SH2-62
Price: 78.62 USD
Availability: InStock

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

AFP Availability:

33 In Stock

North Chesterfield, VA	27
Norfolk, VA	4
Ashland, VA	2 (Pickup only)

Partner Available:

423 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. SH2-62

$78.62/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	ISO 7241-1 Series B
Plating Type	n/a	Product Type	Manual Connect
Flow Rate	3 Gal/min	Vacuum Pressure Rating	27.4 Inch-Hg
Valve Type	Poppet	Valve Material	Stainless Steel 303
Maximum Operating Temperature	121 °C	Ball Material	Stainless Steel
Dimensional Weight	0.03998800959232614 lb	Division	Quick Coupling Division
Body Material	Stainless Steel	Minimum Operating Temperature	-40 °C
Hex Size	0.81 inch	Body Material	303 Stainless Steel
Body Size (inch)	1/4	Connection Thread Size (inch)	1/4 - 18
Seal Material	Nitrile	Application	General Purpose
Connection Type	Female NPTF	Maximum Operating Pressure	5000
Coupling Half	Female Coupler
