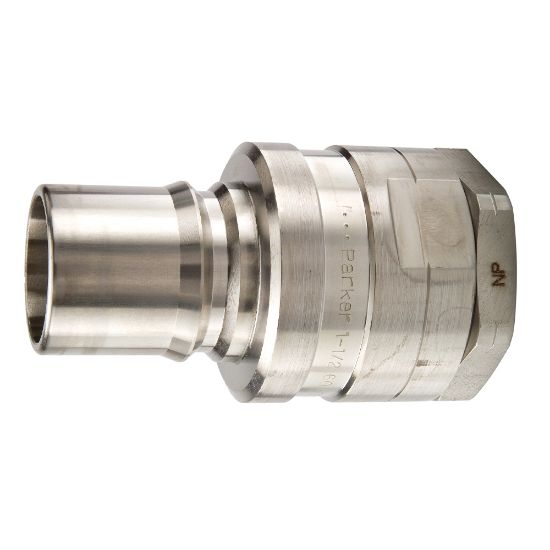

Parker SH12-63N - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SH12-63N

$933.88

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Specifications Met	ISO 7241-1 Series B	Valve Material	Stainless Steel 303
Minimum Operating Temperature	-40 °C	Valve Type	Poppet
Maximum Operating Temperature	121 °C	Product Type	Manual Connect
Hex Size	2.50 inch	Vacuum Pressure Rating	n/a
Flow Rate	100 Gal/min	Plating Type	n/a
Body Material	Stainless Steel	Connection Type	Female NPTF
Body Material	303 Stainless Steel	Application	General Purpose
Maximum Operating Pressure	1500	Body Size (inch)	1 1/2
Connection Thread Size (inch)	1 1/2 - 11 1/2	Coupling Half	Male Nipple
Seal Material	Nitrile
