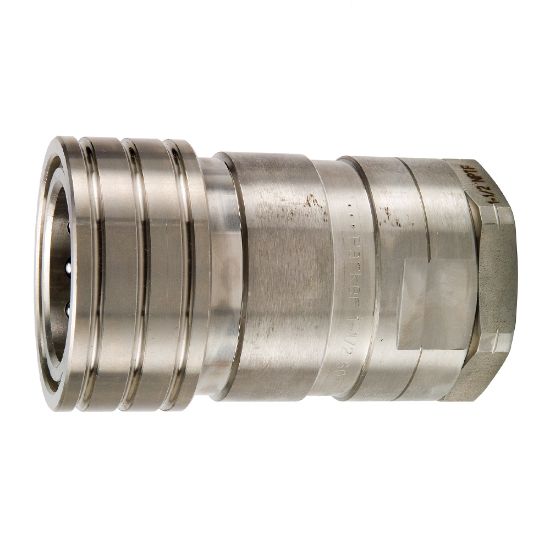

Parker SH12-62L - General Purpose, ISO 7241-B, Hydraulic Quick Couplings - 60 Series

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SH12-62L

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Vacuum Pressure Rating	n/a	Hex Size	2.50 inch
Minimum Operating Temperature	-40 °C	Valve Material	Stainless Steel 303
Maximum Operating Temperature	121 °C	Flow Rate	378 L/min
Valve Type	Poppet	Product Type	Manual Connect
Specifications Met	ISO 7241-1 Series B	Division	Quick Coupling Division
Ball Material	Stainless Steel	Plating Type	n/a
Body Material	Stainless Steel	Maximum Operating Pressure	1500
Coupling Half	Female Coupler	Body Material	303 Stainless Steel
Seal Material	Nitrile	Body Size (inch)	1 1/2
Application	General Purpose	Connection Type	Female NPTF
Connection Thread Size (inch)	1-1/4 - 11 1/2
