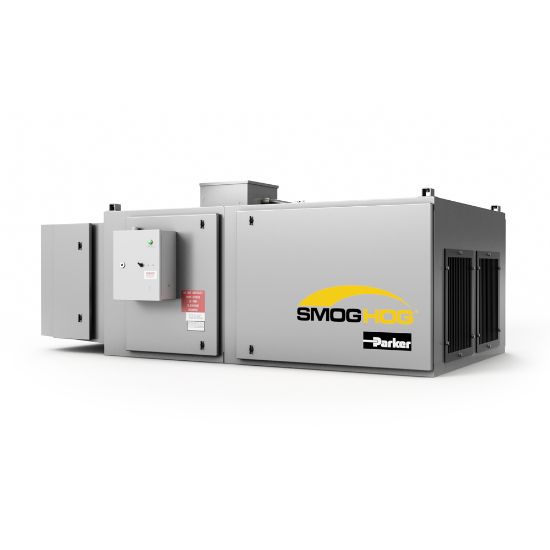

Parker SGN221-FB34L - SGN - Ceiling mounted ESP mist collector

Ceiling or above floor mounted mist collector for water and oil-based coolants. The unit can be configured as an ambient air cleaner or duct can be connected for close to source capture applications. Additional accessories available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SGN221-FB34L

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Filter Type	Electrostatic Precipitator	Pressure Rating	Standard Static
Width	55 inch	Equipment Type	Direct Mount ESP mist filter
Depth	83 inch	Division	Industrial Gas Filtration and Generation Division
Application	Mist, Smoke	Height	61 inch
Color	Hog Gray	Weight	875 lb
Paint Type	Powder Coated	Brand	SmogHog
Motor Power Output Rating	3.0 HP	Optional Accessories	Call Parker
Air Flow Rate	4000 - 6000 CFM	Control Method	External Motor Starter
Flow Characteristic	Left to Right	Input Supply Voltage	460V/3P/60H
Filter Stages	Single Pass	Model Number	SGN-22-1 FILT IN 3HP/460V LR
