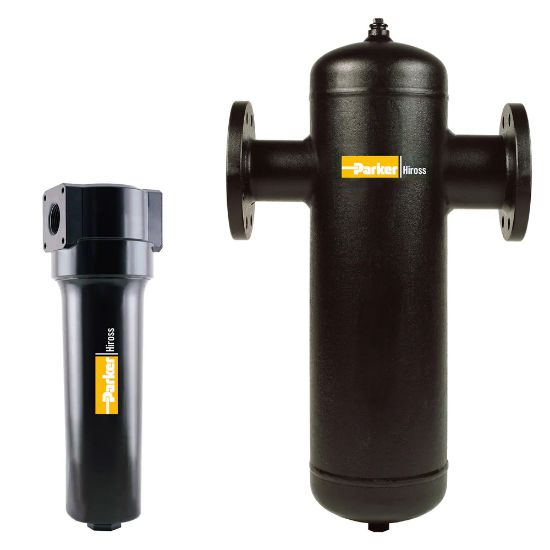

Parker SFH180N - Hypersep STH, SFH and SFV Series Centrifugal Water Separator (for pressures up to 16 barg)

PED approved centrifugal water separators with low pressure drop for the removal of bulk condensate water from compressed air for industrial applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SFH180N

Products specifications

Attribute name	Attribute value
Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental	Product Type	Compressed Air Filter
Height	57.3 inch	Division	Gas Separation and Filtration Division EMEA
Filter Type	Water Separator	Brand	Parker
Width	29.5 inch	Product Series	Hypersep STH and SFH (Up to 16 barg)
Application	Compressed Air and Nitrogen Gas Applications	Micron Rating	n/a
Operating Temperature	41 to 122 °F	Technology	Filtration
Specifications Met	PED, others on request (GOST, ASME, SELO)	Compatible Element	Not Applicable
Division	Gas Separation and Filtration Division EMEA	Materials of Construction	Housing: Carbon Steel, Seals: FASIT 50
Connection Type	Horizontal Flanged DIN EN 1092-1	Port Size	DN 300
Operating Pressure	Maximum: 10 barg	Flow Rate	10770 m³/h @ 7 barg (6339 cfm @ 102 psig)
