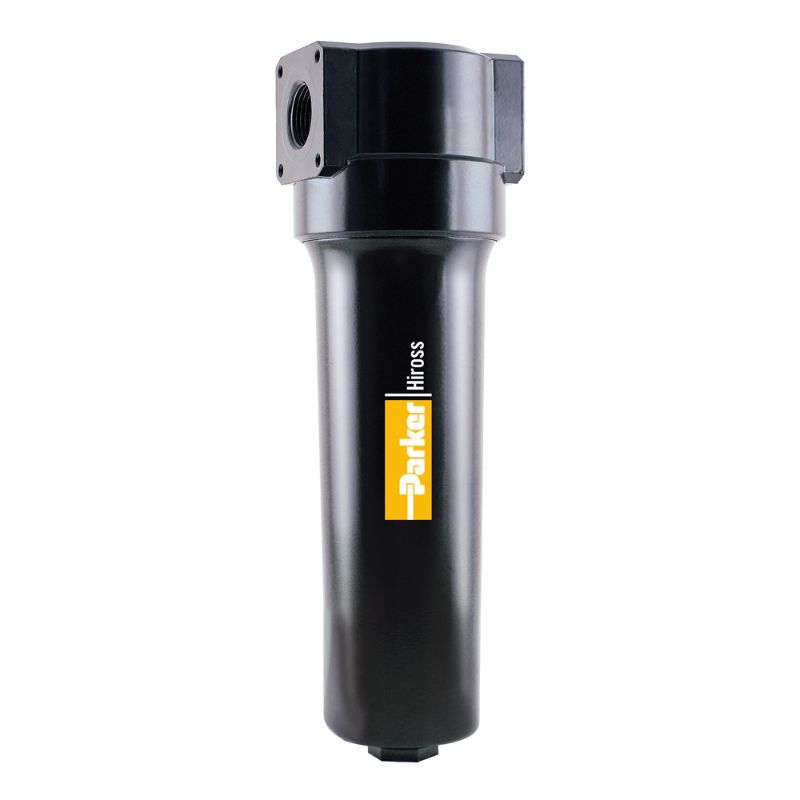

Parker SFH019P - Hypersep STH & SFH series high pressure centrifugal water separator (For pressures up to 40 barg)

PED approved centrifugal high pressure water separators with low pressure drop for the removal of bulk condensate water from compressed air in industrial applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SFH019P

Products specifications

Attribute name	Attribute value
Division	Gas Separation and Filtration Division EMEA	Micron Rating	n/a
Technology	Filtration	Specifications Met	PED, others on request (GOST, ASME, SELO)
Compatible Element	Not Applicable	Product Type	Compressed Air Filter
Width	14.6	Industry	Industrial Manufacturing Equipment<br/> Food & Beverage<br/> Automotive<br/> Electronics<br/> Pharmaceuticals<br/> Medical & Dental
Height	24.6	Product Series	Hypersep STH and SFH (40 bar)
Filter Type	Water Separator	Division	Gas Separation and Filtration Division EMEA
Brand	Parker	Weight	54
Operating Temperature	41 to 122	Application	Compressed Air and Nitrogen Gas Applications
Materials of Construction	Housing: Carbon Steel, Seals: FASIT 50	Port Size	DN65
Connection Type	Horizontal Flanged DIN EN 1092-1	Maximum Flow Rate (m³/h)	1140 m³/hr @ 7 barg (671 cfm @ 102 psig)
