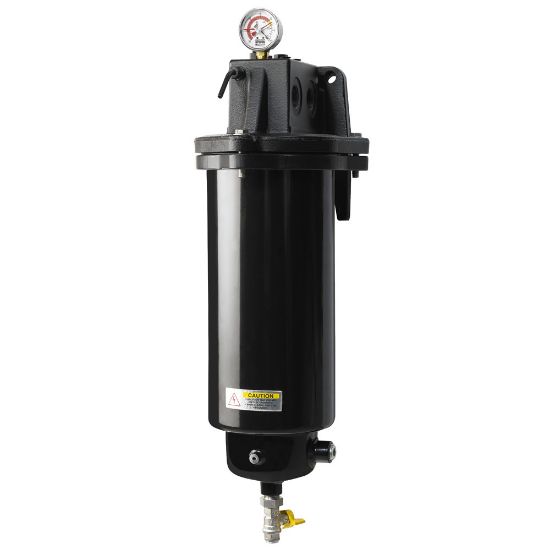

Parker SFBO1425FSVAFG16WP - Low Pressure In-Line Single Fuel Filter - SFBO Series

The SFBO is a series of low pressure single Fuel Filters for diesel filtration in Marine applications. Suitable for flows up to 90 l/min and pressures up to 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SFBO1425FSVAFG16WP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic & Industrial Process Filtration Division EMEA	Seal Material	Fluoroelastomer
Filter Element Type	Filter Separator Element	Micron Rating	25 µm
Connection Type	G1" on right hand side	Options	Water level probe in bowl
Bypass Valve Pressure Rating	No Bypass	Indicator Pressure Setting	1.0 bar
Indicator Type	Vacum gauge in outlet side	Flow Rate	0 to 90 l/min
