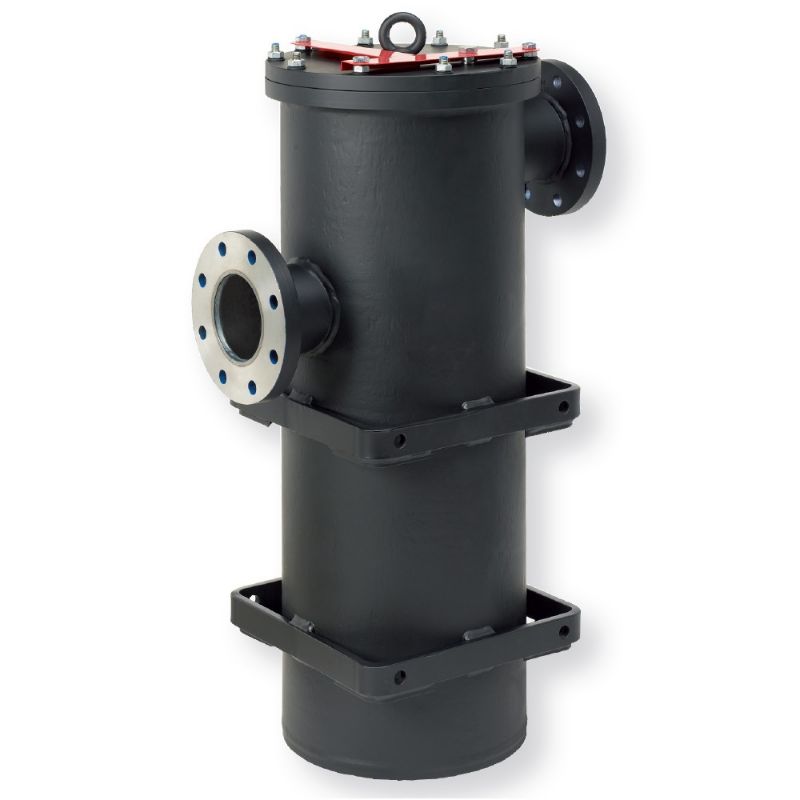

Parker SF1040210QVM3HD80T1 - Low Pressure In-Line Filter - SF1040 Series

The SF1040 is a low pressure Multi-purpose filter for gas and high flow fluid systems.
Suitable for flows up to 1400 l/min and pressures up to 10 bar.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SF1040210QVM3HD80T1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	-20 to 120	Mounting Type	Inline
Housing Material	Steel	Division	Hydraulic & Industrial Process Filtration Division EMEA
Flow Rate	1400	Pressure Rating	10
Seal Material	Fluorelastomer	Filter Element Type	10Q Microglass
Bypass Valve Pressure Rating	2.0 bar	Indicator Type	Visual
Connection Type	DN80/PN16 T-port (outlet on back)	Micron Rating	10 µm
Flow Rate	0 to 1300 l/min	Indicator Pressure Setting	1.5 bar
Options	With Bypass
