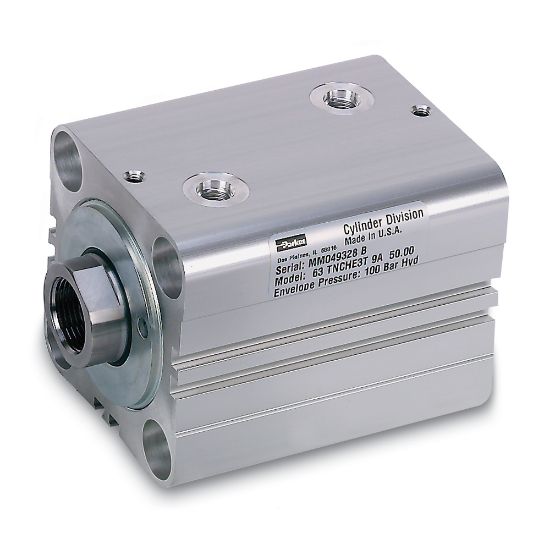

Picture of Parker Series CHE - Compact Hydraulic Cylinders, Metric - Aluminum Body Construction - Series CHE (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker Series CHE - Compact Hydraulic Cylinders, Metric - Aluminum Body Construction - Series CHE (Americas)

Series CHE Metric Compact Hydraulic Cylinders – best choice when end-of-stroke, mid-stroke or continuous stroke position sensing is required; limited mounting space and operating pressures up to 140 bar (bore size dependent).
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. Series CHE
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Stroke Lengthup to 165 mm depending on bore size.Rod Diameter12 to 56
Operating Temperature-23 to 100 °C (depending on seal class)ConfigurationCompact Hydraulic
Operating Pressureup to 140 bar (depending on bore size)Materials of ConstructionAluminum Alloy, Corrosion Resistant
For Fluid TypeHydraulic OilProduct SeriesSeries CHE Compact Hydraulic Cylinders - Aluminum Body Construction
TechnologyHydraulicsProduct TypeCylinder Actuator
Bore Diameter20 to 100DivisionCylinder Division
Mounting Type6 Standard StylesSpecifications MetISO 16656: 2004
