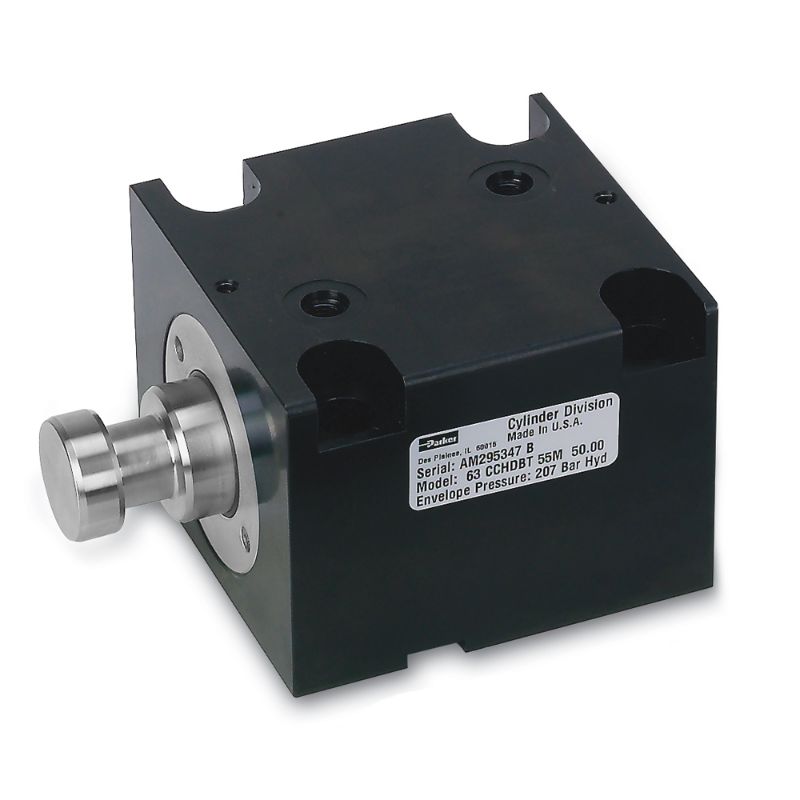

Parker SERIES CHD - Parker Cylinder Series CHD

Series CHD Metric Compact Hydraulic Cylinders – best choice when mounting space is at a premium and the application demands a high force cylinder at operating pressures up to 207 bar with optional end-of-stroke position sensing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SERIES CHD

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Operating Temperature	-23 to 121	Product Type	Cylinder Actuator
Product Series	Series CHD Compact Hydraulic Cylinders - Steel Body Construction	Stroke Length	up to 125 mm (depending on Bore Size)
Specifications Met	ISO 16656: 2004	Rod Diameter	12 to 45
Division	Cylinder Division	Operating Pressure	up to 207
Assembly	Compact Hydraulic	Technology	Hydraulics
For Fluid Type	Hydraulic Oil	Bore Diameter	20 to 80
Mounting Option	13 Standard Styles	Materials of Construction	Steel
