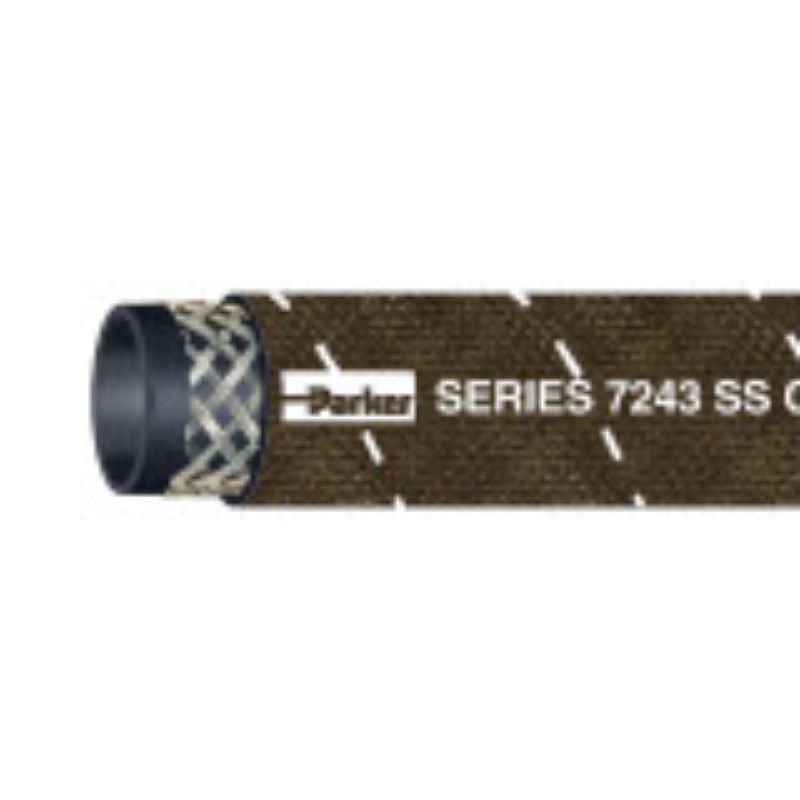

Parker Series 7243 - Liquid Petroleum Gas LPG Hose, Series 7243

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Series 7243

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Cover Material	Chloroprene-impregnated	Maximum Operating Pressure	350
Hose Inner Tube Material	Black	Cover Color	Black
Minimum Operating Temperature	-40	Media	LPG
Hose Reinforcement Material	Braid of Textile	Compatible Fitting	n/a
Length per Package	500	Division	Hose Products Division
Maximum Operating Temperature	180	Specifications Met	UL 21.0
Package Type	Reel	Tube Material	Nitrile
Application	Liquefied Petroleum Gas (LPG)	Minimum Bend Radius	2.8
Outside Diameter	0.922	Weight	0.29
Inside Diameter	1/2	Maximum Working Pressure (psi)	350
Hose I.D. (inch)	1/2

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
