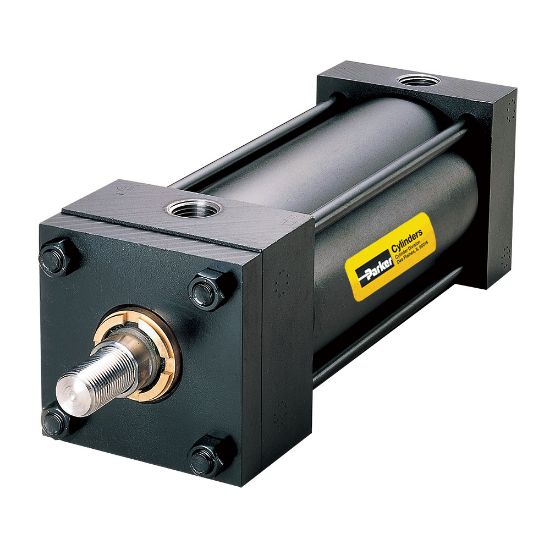

Parker Series 3L - Hydraulic Cylinders - Medium Duty, Tie Rod Construction - Series 3L (Americas)

Series 3L medium duty hydraulic cylinders offer advanced features like the “Jewel” rod gland assembly, adjustable floating cushions, case hardened piston rods and high strength tie rods with rolled threads - compare and choose the Parker advantage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Series 3L

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Bore Diameter	1 to 8	Division	Cylinder Division
Rod Diameter	0.5 to 5.5	Materials of Construction	Steel
Specifications Met	ANSI (NFPA) T3.6.7R3-2009. Specifications and Mounting. Dimension Standards.	Stroke Length	Available in any practical stroke length.
Technology	Hydraulics	Operating Temperature	-10 to 165
For Fluid Type	Hydraulic Oil	Operating Pressure	1000 psi Bore Size Dependent
Product Type	Cylinder Actuator	Configuration	Square Head
Mounting Type	16 Standard Styles at various application ratings	Product Series	Series 3L Medium Duty Hydraulic Cylinders
