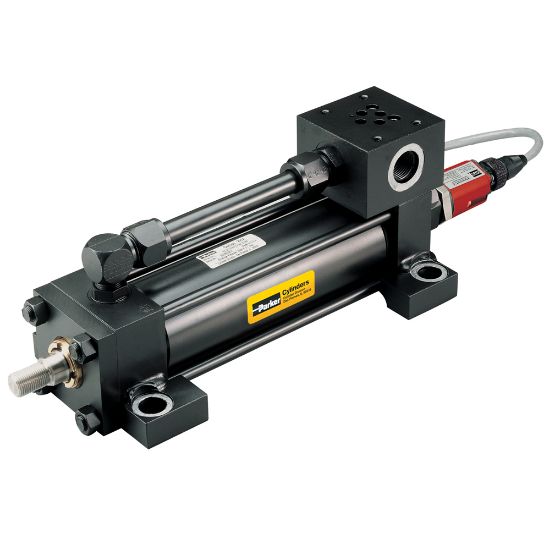

Parker Series 2HX 2HDX and Series 3HX 3HDX - Hydraulic Cylinders, Electrohydraulic – Parker Series 2HX/3HX Family (Americas)

Heavy Duty Electrohydraulic Cylinders – Series 2HX/3HX, 2HDX/3HDX and 2HBX/3HBX – are engineered for your feedback/control systems with transducer, valve manifold and hydraulic plumbing and are electronically tested to verify required output.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Series 2HX 2HDX and Series 3HX 3HDX

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Rod Diameter	1 to 5.5	Bore Diameter	2 to 8
Stroke Length	Available in any practical stroke length.	For Fluid Type	Hydraulic Oil
Materials of Construction	Steel	Configuration	Square Head
Product Type	Cylinder Actuator	Division	Cylinder Division
Technology	Hydraulics	Operating Temperature	-10 to 165
Mounting Type	18 Standard Styles at various application ratings	Operating Pressure	3000
Product Series	Series 2HX, 3HX Electrohydraulic Cylinders	Specifications Met	ANSI (NFPA) T3.6.7R3-2009. Mounting and Specification. Heavy Duty Service.
