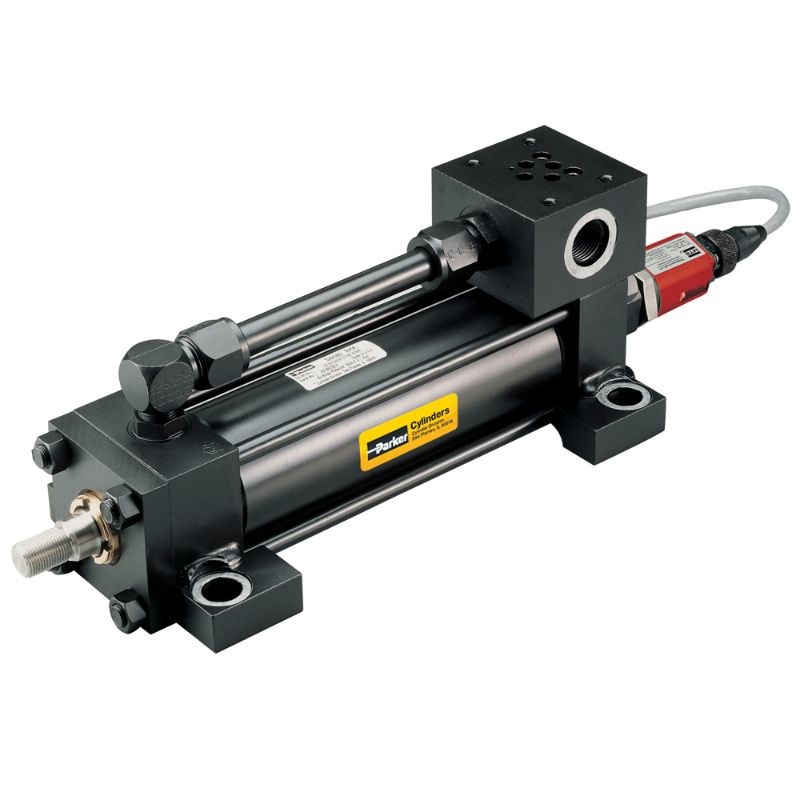

Picture of Parker SERIES 2HX 2HDX AND SERIES 3HX 3HDX - Hydraulic Cylinders, Electrohydraulic – Parker Series 2HX/3HX Family (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SERIES 2HX 2HDX AND SERIES 3HX 3HDX - Hydraulic Cylinders, Electrohydraulic – Parker Series 2HX/3HX Family (Americas)

Heavy Duty Electrohydraulic Cylinders – Series 2HX/3HX, 2HDX/3HDX and 2HBX/3HBX – are engineered for your feedback/control systems with transducer, valve manifold and hydraulic plumbing and are electronically tested to verify required output.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. SERIES 2HX 2HDX AND SERIES 3HX 3HDX
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionCylinder DivisionProduct SeriesSeries 2HX, 3HX Electrohydraulic Cylinders
Specifications MetANSI (NFPA) T3.6.7R3-2009. Mounting and Specification. Heavy Duty Service.TechnologyHydraulics
Mounting Type18 Standard Styles at various application ratingsOperating Pressure3000
Operating Temperature-10 to 165Materials of ConstructionSteel
For Fluid TypeHydraulic OilStroke LengthAvailable in any practical stroke length.
Rod Diameter1 to 5.5Bore Diameter2 to 8
Product TypeCylinder ActuatorConfigurationSquare Head
