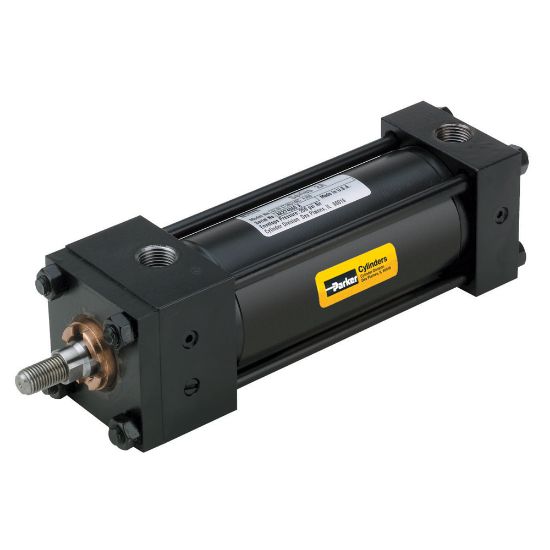

Parker Series 2A and Series 2AN - Pneumatic Cylinders, Heavy Duty Steel – Series 2A/2AN

Series 2A/2AN heavy duty steel pneumatic cylinders offer advanced features like the Jewel rod gland assembly, adjustable floating cushions, case hardened piston rods and high strength tie rods with rolled threads. Compare and choose the Parker advantage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. Series 2A and Series 2AN

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Technology	Pneumatics	Rod Diameter	0.5 to 5.5
Division	Cylinder Division	Specifications Met	ANSI (NFPA) T3.6.7R3-2009
Operating Temperature	-10 to 165	Operating Pressure	250
Configuration	Tie Rod	Bore Diameter	1 to 14
Stroke Length	Available in any practical stroke length.	For Fluid Type	Filtered Air
Materials of Construction	Steel	Product Series	Series 2A, 2AN Heavy Duty Steel Pneumatic Cylinders
Mounting Type	14 Standard Styles	Product Type	Cylinder Actuator

Product resources

Compliance, Certifications & Safety

Cylinder Safety Guide, Service Bulletin 0800.01-T1 (PDF)

Literature and Reference Materials
