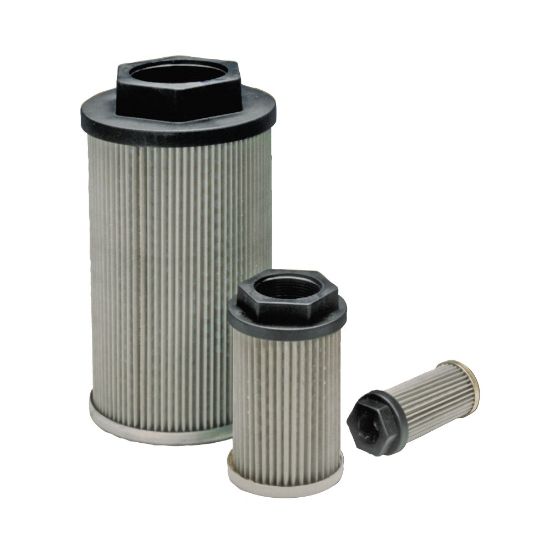

Parker SE.75221210 - Suction Elements / Inbuilt Filters - SE Series

The Parker SE Series comprises a range of suction elements / inbuilt tank filters. The elements are equipped with 125 micron rating abs steel wire mesh media and are capable of flows ranging from of 15 - 500 l/min (4 -132 gpm).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE.75221210

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Technology	Filtration	Options	None
Mounting Type	Tank Mounted	Division	Hydraulic & Industrial Process Filtration Division EMEA
Division	Hydraulic & Industrial Process Filtration Division EMEA	Brand	Parker
Housing Material	Nylon/Plated mild steel	Length	139 mm
Outside Diameter	64 mm	Micron Rating	125.0 MICRON
Application	• Deck and mobile cranes<br/>• Firefighting equipment<br/>• Forwarders<br/>• Hydraulic presses<br/>• Marine steering units<br/>• Power packs<br/>• Waste management, dump and fork lift trucks<br/>• Excavators<br/>• Harvesters<br/>• Was	Product Type	Hydraulic Filter
Operating Temperature	-30 to 90 °C	Industry	• Agriculture<br/>• Construction<br/>• Oil and Gas<br/>• Marine<br/>• Mining<br/>• Forestry
Port Type	G¾	Flow Rate	50 l/min
Bypass Valve Pressure Rating	No Bypass
