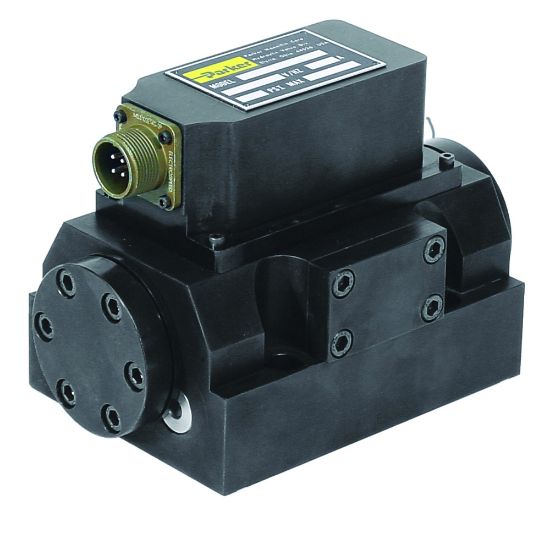

Parker SE60HAAABVA25 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE60 Series

Parker’s SE60 series valve is a two stage, 4-way, flapper and nozzle style servovalve.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE60HAAABVA25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seal Material	Fluorcarbon	Signal Input	High
Body Material	Aluminum	Minimum Operating Temperature	-4
Additional Options	Consult catalog for additional features	Maximum Operating Pressure	3000
Division	Hydraulic Valve Systems Division	Valve Type	Servovalve
Maximum Flow Rate	95	Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series)
Maximum Operating Temperature	+140	Weight	7.5
Pilot Port Type	Internal	Actuation Type	Hydraulic Pressure
Connection Type	Port C2; (+) signal to A, C	Size	2.00in; 50.8mm
Maximum Operating Pressure	3000 PSI	Resistance (Ohms)	40 Ohms; 60 mA (Parallel); 30mA (Series)
Flow Rate (gpm)	25
