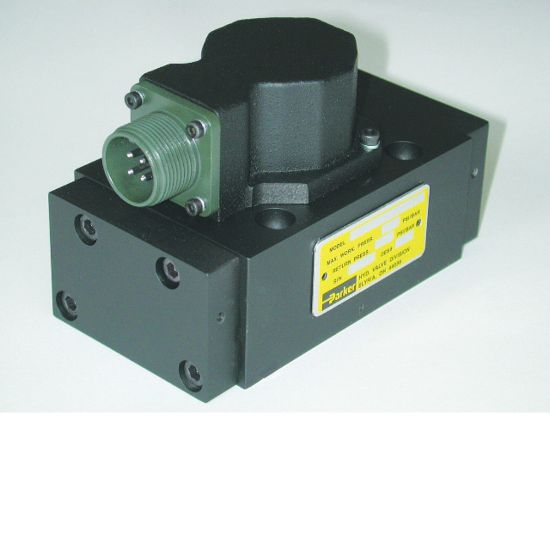

Parker SE31HAAAAVA10 - Two-stage, 4 way, Flapper and Nozzle Servovalve - SE31 Series

Parker’s SE31 series valve is a two stage, 4-way, flapper and nozzle style servovalve and is designed to fit onto DIN NG10 or NFPA D05 port patterns.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE31HAAAAVA10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	+140	Mounting Type	D05HE (no Y port)
Weight	2.4	Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series)
Actuation Type	Hydraulic Pressure	Pilot Port Type	Internal
Additional Options	Consult catalog for additional features	Signal Input	High
Body Material	Aluminum	Minimum Operating Temperature	-4
Seal Material	Fluorocarbon	Valve Type	Servovalve
Division	Hydraulic Valve Systems Division	Maximum Operating Pressure	3000
Maximum Flow Rate	10	Connection Type	Port C1, (+) signal to A, C
Mounting Type	D05HE (no Y port)	Maximum Operating Pressure	3000 PSI
Flow Rate (gpm)	10
