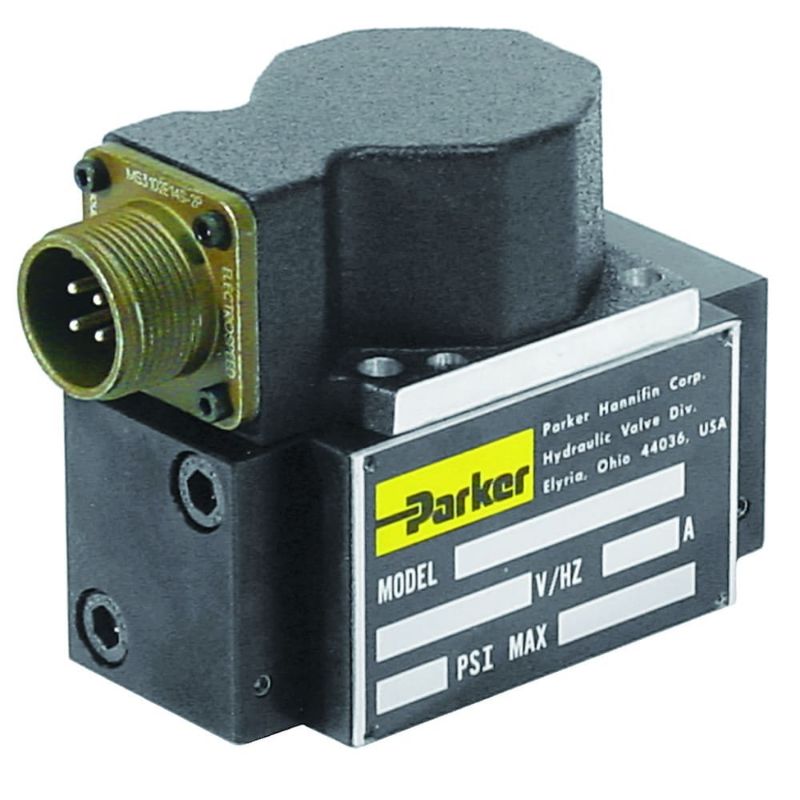

Parker SE05HAAABNA2.5 - Two-stage, 4-way, Flapper and Nozzle Servovalve - SE05/SE10/SE15 & SE2N Series

Parker’s SE05, SE10, SE15 & SE2N series valves are two stage, 4-way, flapper and nozzle style servovalves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SE05HAAABNA2.5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Response Time	High	Minimum Operating Temperature	-22
Actuation Type	Hydraulic Pressure	Additional Options	Consult catalog for additional features
Body Material	Aluminum	Maximum Operating Temperature	+266
Seal Material	Nitrile	Materials of Construction	Aluminum
Maximum Operating Pressure	210	Weight	2.2
Operating Pressure	3045	Division	Hydraulic Valve Systems Division
Product Style	Servovalve	Maximum Flow Rate	10
Resistance	40 Ohms; 60 mA (Parallel); 30mA (Series)	Flow Rate (gpm)	2.5
Mounting	0.625in; 15.8mm	Maximum Operating Pressure	3000 PSI
Size	15.88 mm
