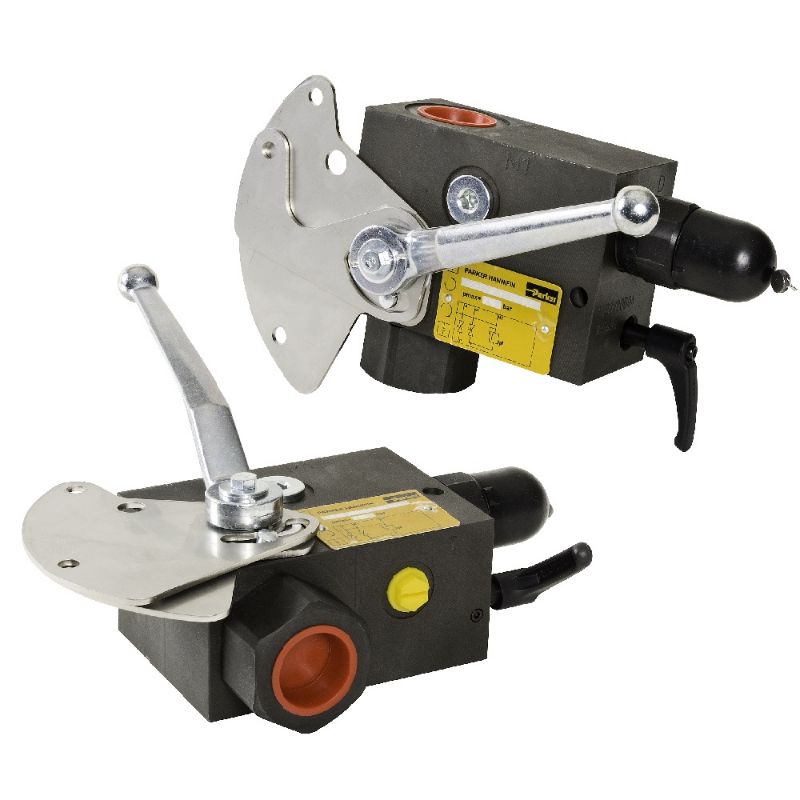

Picture of Parker SBAR10E1T1-100'-AA1 - Accumulator Safety Blocks - SBA Series - (Americas)

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker SBAR10E1T1-100'-AA1 - Accumulator Safety Blocks - SBA Series - (Americas)

Note: This product is no longer available - please refer to the “Related Products” section of this page for alternative products, or contact us for further assistance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. SBAR10E1T1-100'-AA1
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
Electrical Part OptionU=24VDC, 105VDC (for 115V/60 Hz AC supply), P=26W, 100% ED, IP 65 to DIN 40050, connector to DIN 43650 type AFor Fluid TypeMineral oil according to DIN/ISO. For other fluid types, please contact factory.
CoatingBlack zinc phosphatedKinematic Viscosity10 to 800
Operating Temperature5° F (-15° C) to 176° F (80° C)Valve Type- Shut-off valve: ball valve<br/>- Pressure relief: poppet-type valve with dampening<br/>- Manually-operated discharge valve: poppet-type valve<br/>- Electrically-operated discharge valve: poppet-type valve (where fitted)
Number of Ports- A port: M33x2<br/>- P port: G1/2<br/>- T port: G3/8<br/>- M1 port: G1/2<br/>- M2 port: G1/4Maximum Operating Pressure5075 psi (350 bar)
DivisionAccumulator and Cooler DivisionActuation Device Type24 VDC Normally Open (NO)
SizeNG10Seal MaterialBuna-N / Nitrile
Port Connection TypeBSPP PortsSpecial OptionsStandard
Pressure Relief ValveAdjustable (non-CE)Pressure Relief Setting (psig)51 to 100 bar (740 to 1450 psi) range
