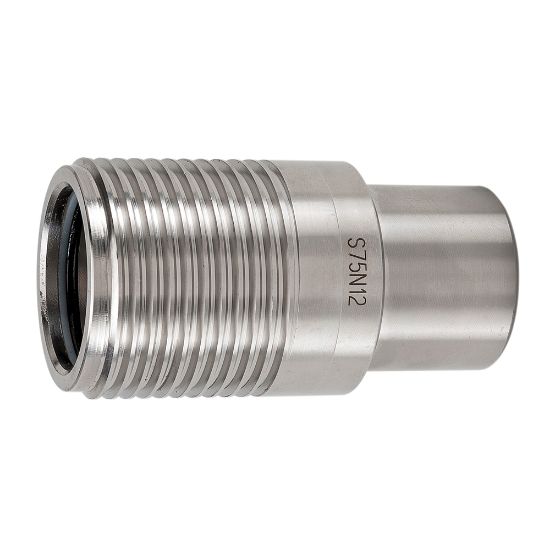

Parker S75N32-32F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S75N32-32F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Type	Thread-to-Connect	Application	Hydraulic high pressure, connect under pressure
Valve Type	Poppet	Plating Type	na
Division	Quick Coupling Division	Minimum Operating Temperature	-40 °F
Hex Size	3.5 inch	Body Material	Stainless Steel
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Body Size (inch)	2	Connection Type	Female NPT
Connection Thread Size (inch)	2 - 11 1/2	Coupling Half	Male Nipple
Maximum Operating Pressure	3000	Specifications Met	na
Sleeve Type	na
