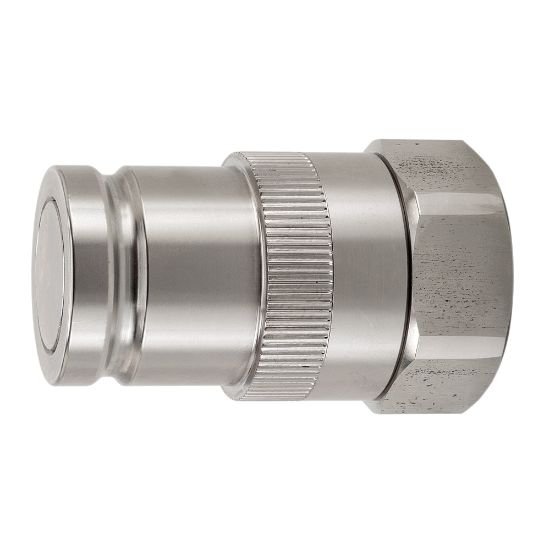

Parker S71-3N8-8EFV - Flat Face, High Pressure, Hydraulic Quick Couplings - 71 Series

Parker's high pressure stainless steel, non-spill, flat face hydraulic couplers are available in a wide range of sizes for use in hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S71-3N8-8EFV

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Application	Hydraulics	Plating Type	n/a
Minimum Operating Temperature	-15 °F	Hex Size	1.50 inch
Maximum Operating Temperature	400 °F	Division	Quick Coupling Division
Seal Material	Fluorocarbon	Product Type	Push to Connect
Valve Type	Non-spill	Body Material	Stainless Steel
Connection Type	Female UNF	Connection Thread Size (inch)	3/4 - 16
Body Material	316 Stainless Steel	Coupling Half	Male Nipple
Body Size (inch)	1/2	Maximum Operating Pressure	5000
