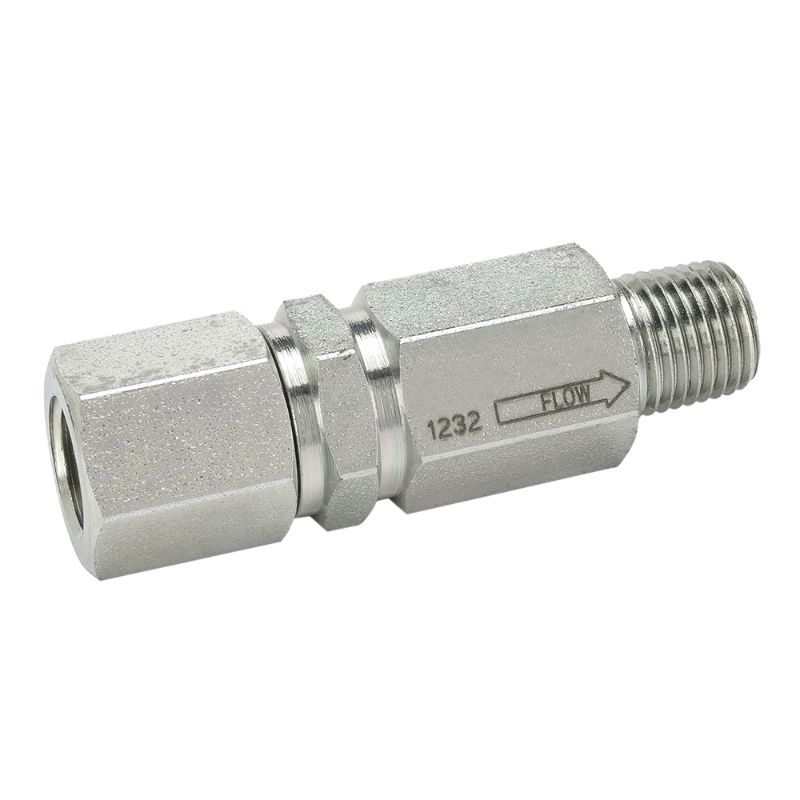

Parker S6C8F-F5 - Soft Seat, In Line Hydraulic Check Valves - S6C and 3C Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S6C8F-F5

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	6000 psi
Minimum Operating Temperature	400 °F	Maximum Flow Rate	12 Gal/min
Mounting Type	Threaded	Seat Type	Soft Seat
Configuration	n/a	Maximum Operating Temperature	-40 °F
Actuation Type	Mechanical	Division	Quick Coupling Division
Flow Direction	n/a	Connection Type	Female NPT to Female NPT
Body Material	Stainless Steel	Connection Size	1/2 - 14 NPTF
Cracking Pressure (psi)	5	Inlet Port Connection Type	Female NPTF
Outlet Port Size (inch)	1/2 - 14 NPTF	Outlet Port Connection Type	Female NPTF
Inlet Port Size (inch)	1/2 - 14 NPTF	Body Size (inch)	1/2
Seal Material	Fluorocarbon
