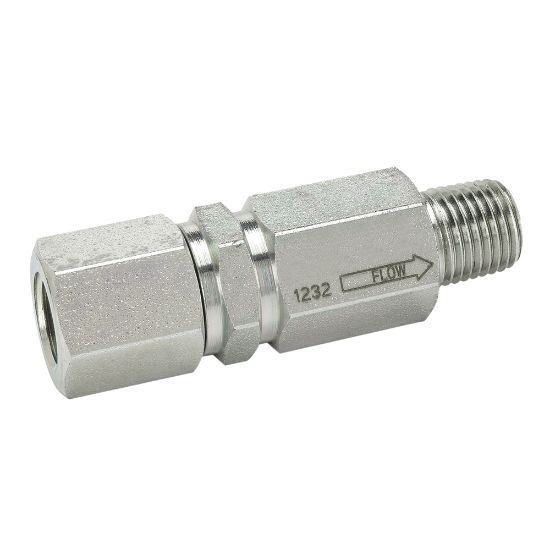

Parker S6C4F-F5 - Soft Seat, In Line Hydraulic Check Valves - S6C and 3C Series

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S6C4F-F5

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Seat Type	Soft Seat	Minimum Operating Temperature	400 °F
Configuration	n/a	Division	Quick Coupling Division
Actuation Type	Mechanical	Maximum Operating Temperature	-40 °F
Flow Direction	n/a	Connection Type	Female NPT to Female NPT
Body Material	Stainless Steel	Maximum Operating Pressure	6000 psi
Maximum Flow Rate	3 Gal/min	Mounting Type	Threaded
Connection Size	1/4 - 18 NPTF	Cracking Pressure (psi)	5
Outlet Port Connection Type	Female NPTF	Inlet Port Connection Type	Female NPTF
Body Size (inch)	1/4	Outlet Port Size (inch)	1/4 - 18 NPTF
Seal Material	Fluorocarbon	Inlet Port Size (inch)	1/4 - 18 NPTF
