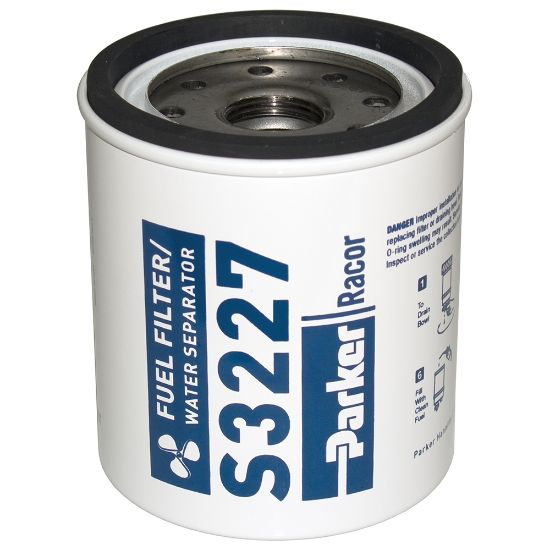

Parker S3227 - Marine Replacement Filter Elements – Racor Marine Spin-on Series

Spin-on Series Marine Replacement Filter Elements utilize Racor’s proprietary Aquabloc® media to reliably remove dirt and water from fuel, thus providing maximum protection of inboard and outboard engines. UL-approved versions available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S3227

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Related Parts	Clear Bowl: RK 30475	Connection Type	1"-14
Filter Element Type	10 Micron Aquabloc® Spin-on	Product Series	Marine Gasoline Spin-on FF/WS
Flow Direction	Outside-to-inside	Brand	Racor
Division	Engine Mobile Original Equipment Division	Outside Diameter	3.8 in / 97 mm
Series	320R-RAC-01/02, 490R-RAC-01	UL Certification	No
Height	4.0 in / 102 mm	Micron Rating	98% @ 10 Micron

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

Racor EB00033 Marine Gasoline Spin-on Filters - Bowl Inspection (PDF)
