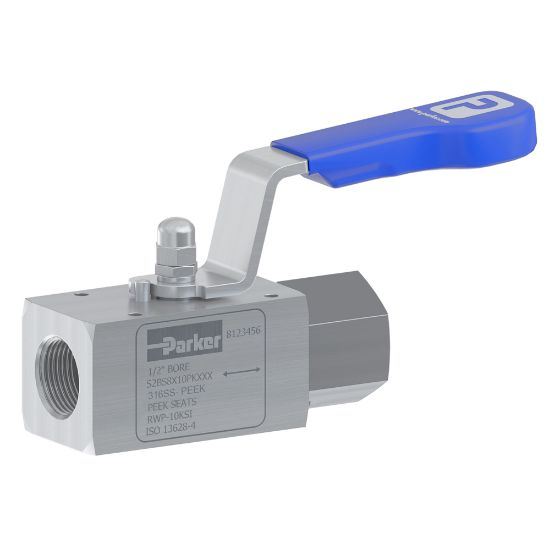

Parker S2BS8E10PK6N-H - Subsea Ball valve, 2-Way, Soft Seat

Parker's 2-way subsea ball valve featuring soft seat and floating ball design for operations up to 10,000 PSI and depths down to 3050m. Designed and tested to API 17D PSL 3 (including API 6A PR2F) for safe and reliable performance in subsea applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2BS8E10PK6N-H

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Instrumentation Products Division	Connection Type	NPT
Maximum Pressure Rating	10,000 PSI	Body Material	Duplex Stainless Steel
Design Rating	API 6A	Maximum Operating Temperature	121°C
Connection Size	3/8"	Additional Options	n/a
Maximum Depth	3050m	Valve Configuration	2-way Quarter Turn
Minimum Operating Temperature	-29°C	Options	Handle
Flow Direction	Bi-directional	Bore Diameter	10mm
Seat Material	PEEK	Options	Handle
Additional Options	n/a	Body Material	Duplex Stainless Steel
Connection Size	3/8"	Seat Material	PEEK
Connection Type	NPT	Bore Diameter (mm)	10

Product resources

Compliance, Certifications & Safety

Certification Subsea 2-Way Ball Valve Soft Seat Lloyds Inspection Certificate (PDF)

Literature and Reference Materials
