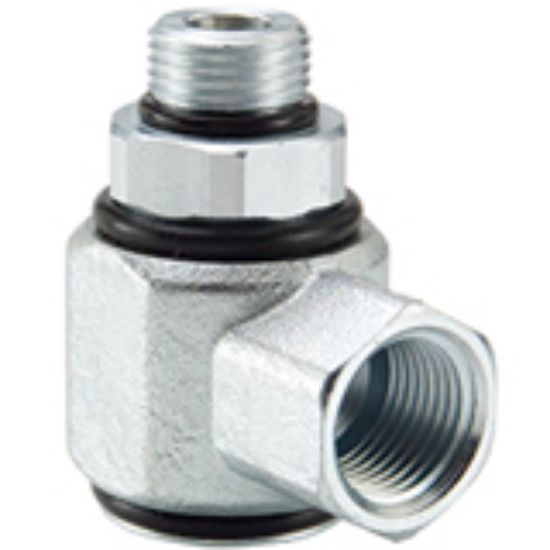

Parker S2510-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2510-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	3000	Maximum Operating Speed	10
Minimum Operating Temperature	-40	Division	Quick Coupling Division
Maximum Operating Temperature	250	Body Material	Steel
Configuration	90 degree	Housing Connection Thread Size (inch)	1 1/16 - 12 UN
Seal Material	Nitrile	Shaft Connection Style	Male SAE O-ring Straight Thread
Housing Connection Style	Female SAE Straight Thread	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Plating	Zinc with clear trivalent chromate
