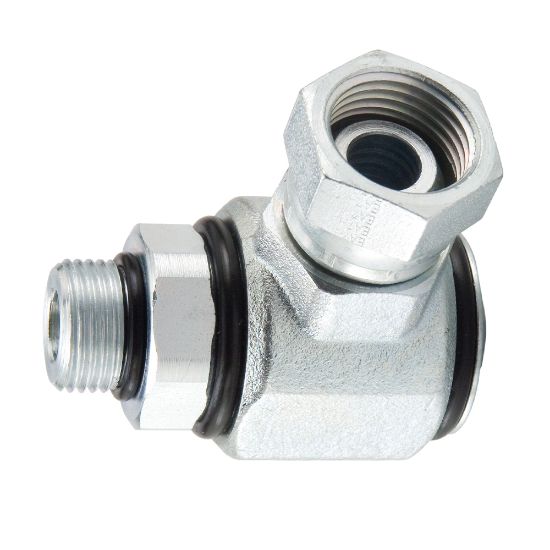

Parker S2507-12-12 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2507-12-12

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Body Material	Steel	Maximum Operating Speed	10 RPM
Maximum Operating Temperature	250 °F	Configuration	90 degree
Maximum Operating Pressure	3000 psi	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Plating	Zinc with clear trivalent chromate
Housing Connection Style	Female NPSM Pipe Swivel	Seal Material	Nitrile
Shaft Connection Style	Male SAE O-ring Straight Thread	Shaft Connection Thread Size (inch)	1 1/16 - 12 UN
Housing Connection Thread Size (inch)	3/4 - 14 NPSM
