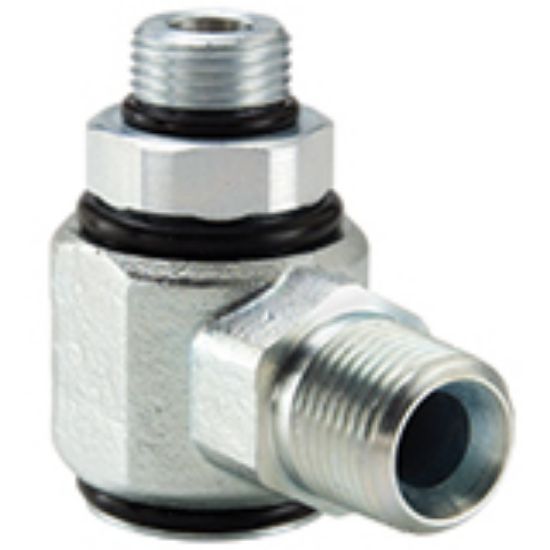

Parker S2501-6-6 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2501-6-6

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Maximum Operating Speed	10 RPM
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	90 degree	Maximum Operating Pressure	3000 psi
Division	Quick Coupling Division	Plating	Zinc with clear trivalent chromate
Shaft Connection Thread Size (inch)	9/16 - 18 UNF	Housing Connection Thread Size (inch)	3/8 - 18 NPTF
Seal Material	Nitrile	Shaft Connection Style	Male SAE O-ring Straight Thread
Housing Connection Style	Male NPTF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
