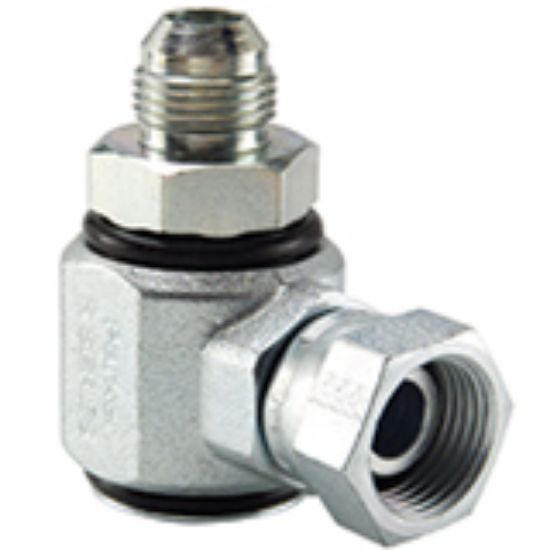

Parker S2307-4-4 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2307-4-4

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	3000 psi	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Maximum Operating Speed	10 RPM
Maximum Operating Temperature	250 °F	Body Material	Steel
Configuration	90 degree	Housing Connection Style	Female NPSM Pipe Swivel
Seal Material	Nitrile	Shaft Connection Thread Size (inch)	7/16 - 20 UNF
Housing Connection Thread Size (inch)	1/4 - 18 NPSM	Plating	Zinc with clear trivalent chromate
Shaft Connection Style	Male JIC 37 degree

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
