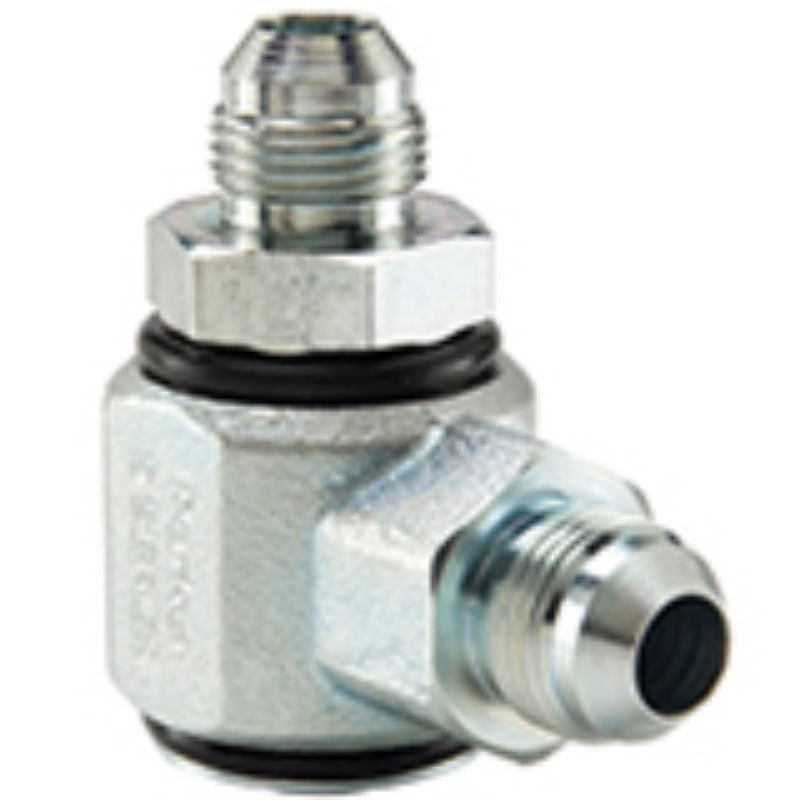

Parker S2303-10-10 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. S2303-10-10

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250
Body Material	Steel	Configuration	90 degree
Maximum Operating Pressure	3000	Maximum Operating Speed	10
Minimum Operating Temperature	-40	Division	Quick Coupling Division
Plating	Zinc with clear trivalent chromate	Housing Connection Style	Male JIC 37 degree
Shaft Connection Style	Male JIC 37 degree	Shaft Connection Thread Size (inch)	7/8 - 14 UNF
Housing Connection Thread Size (inch)	7/8 - 14 UNF	Seal Material	Nitrile

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
