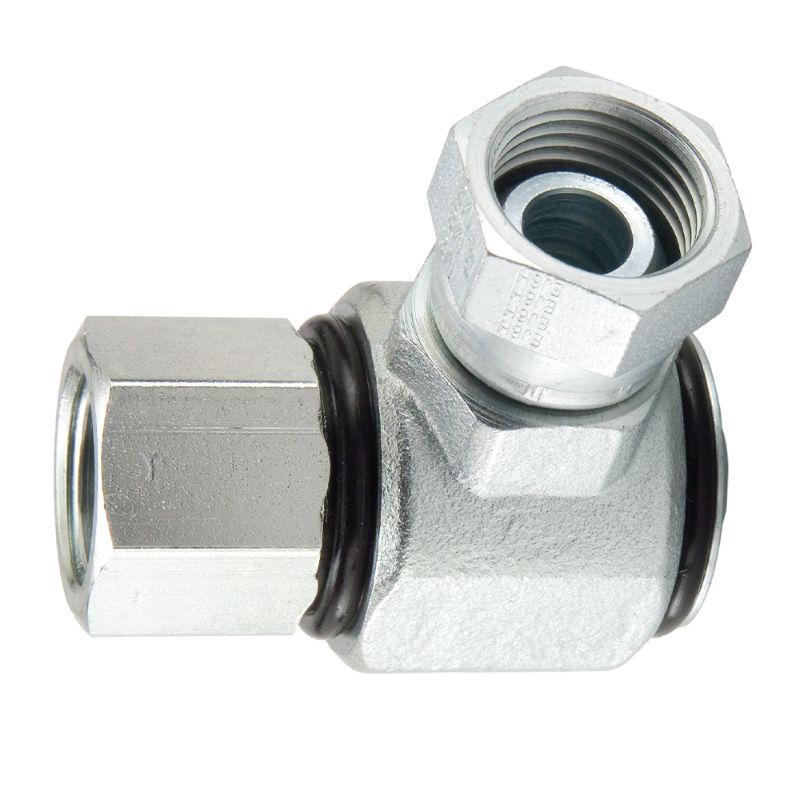

Parker S2207-16-16 - Pressure Balanced, Hydraulic Swivels - S Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. S2207-16-16

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Quick Coupling Division
Minimum Operating Temperature	-40 °F	Body Material	Steel
Maximum Operating Temperature	250 °F	Maximum Operating Speed	10 RPM
Maximum Operating Pressure	2600 psi	Configuration	90 degree
Shaft Connection Style	Female NPTF	Plating	Zinc with clear trivalent chromate
Housing Connection Thread Size (inch)	1 - 11 1/2 NPSM	Housing Connection Style	Female NPSM Pipe Swivel
Shaft Connection Thread Size (inch)	1 - 11 1/2 NPTF	Seal Material	Nitrile
